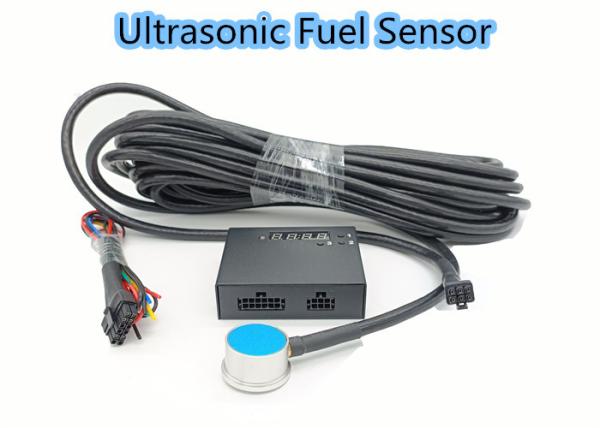

Non Contact Ultrasonic Fuel Tank Sensor easy installation output
0-5V RS232 for truck/car/vehicle
Features & Specifications
⚫ No Drilling Holes in Tank, Easy Installation
⚫ Support Any Liquid: Diesel, Gasoline, etc.
⚫ Support Any Material Tank: Metal/Aluminum/Stainless Steel
/Fiber/Plastic
⚫ Resolution: 0.1mm
⚫ Accuracy: 99.5%
⚫ Maximum Measuring Range: 100cm (for steel plate of 5mm thick)
⚫ Output Interface: R(10~190Ohm)+ RS232 +Analog(0~5V)
Technical parameters
| Operating voltage | 9~36VDC |
| Maximum power consumption | 0.8W/12VDC |
| Work temperature | -40℃~+85℃(Industry level) |
| Working humidity | 5%~90% |
| Measurement range | 5~200cm (For steel plate of 5mm thick, determined according to
materials and thickness of the container) (300cm can be Customized ) |
| Pressure bearing scope | ≤0.8kg or 0.8MPa |
| Liquid measurement accuracy | ±1% |
| Equipment interface | Provide output port of analog voltage/current, RS232 and RS485 data
port. |
Product characteristics
High precision: The resolution ratio of oil level height
measurement of the oil level sensor is 0.1mm and the measurement
accuracy is ±0.5%. High measurement accuracy can be guaranteed at
high temperature and high cold external environment.
Good long-term stability: The oil level sensor adopts ultrasonic
wave measurement method and performs non contact measurement. It is
different from the float-type, pressure type, magnetic sliding
system measurement methods that adopt direct contact measurement
methods at present generally so as to avoid corrosion and pollution
of oil level sensor by fuel oil and maintain long-term stability.
Easy installation and maintenance: It only needs to install the
sensor probe at the lower part of external fuel tank. There is no
need to change the existing measurement system of the fuel tank, no
need to drill hole and make change on the fuel tank. At the same
time, it can guarantee normal operation of former oil meter of
vehicles.
Environmental sound, small energy consumption. Non contact
measurement makes it unnecessary to bore hole on or modify the fuel
tank. No dirt and pollution will be brought to the fuel oil.
Strong reliability: Still work normally at hostile environment;
anti-damp, anti-acid, inflaming retarding, anti-interference and
Intelligent.
The product can be used independently by using the auxiliary
display screen. It may also be used with GPS equipment by
transferring the data to backstage through GPS equipment for data
statistics, statement analysis and query.
Ultrasonic Level Sensor Wireless Fuel Level Sensors Non Contact
Media Digital Display
FAQ
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be
fully pre-inspection before shipping to you. We have the
certification of ISO, CE, we could send the certification test of
our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your
requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance.
Generally, we will arrange the shipment within 7 days after
received payment.
Q: How about warranty?
A: 12 months warranty
