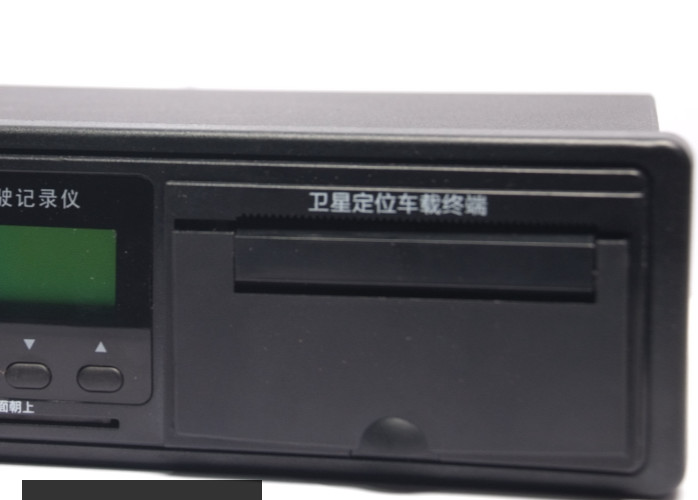

Print content including: License plate number, license plate
classification, driver code, driver's license number, printing
time, parking time, vehicle's average speed of per minute within 15
minutes before parking(record the speed per minute, in total 15
times), Fatigue driving time(recent 4 consecutive fatigue driving
record)
Power-off protection
VTDR has power-off protection function, it can auto-saved data when
power is cut off.
Technical parameters
Working voltage: DC9V ～ 36V
Working current: <200mA (DC12V)
Maximum current: <2000mA when printing
Working temperature: -20 ～ +70℃
Working humidity: 20 ～ 95%
Dimensions: 158mmX97mmX55mm
10PIN basic interface definition figure
| Wire No. | Color | Function | Signal description | Remark |
| 1 | Black | Power - | GND | |
| 2 | Red | Power + | DC 9V~36V input | |
| 3 | Yellow&Black | SOS alarm wire | Connect the external alarm button | |
| 4 | Black | SOS alarm wire | |
| 5 | Orange | ACC detect wire | Voltage in 9V~36V is Valid | |
| 6 | Purple | Fuel consumption detect wire | Voltage in 0V~36V is Valid | |
| 7 | Blue | Speed sensor detect wire | Detect the valid Electronic pulse | |
| 8 | Red&White | Car lock control wire | Cut off power&oil (Connect the external relay) | |
| 9 | Yellow | Brake signal wire | Voltage in 9V~36V is Valid | |
| 10 | Grey | Spare output wire | Spare output wire | |
Installation instructions and notes
(1)Wires include power wires, speed signal wire, left and right
turns, brakes, door switches, speakers, alarm and other signal
wires. They will transfer the various signals and state of vehicle
to the VTDR;
(2) Pay attention to the reliability of the connection, VTDR should
be installed near the driver where is easy to operate and observe.
(3) Installation, connection and Parameter settings should be
operated by the professional person.
(4) Checking the power wires’ connection if there is no display and
no self-checking notification tone when the car is powered.
(5)When car is powered, the VTDR has display but no speed display,
first check if the speed signal wire is connect correctly, if it is
, then check if the accessories is damage or not.
(6)Put the device in the place where is not easy to fill water and
good heat dissipation, do not plug and insert any power wires when
device is powered to prevent any damage.
