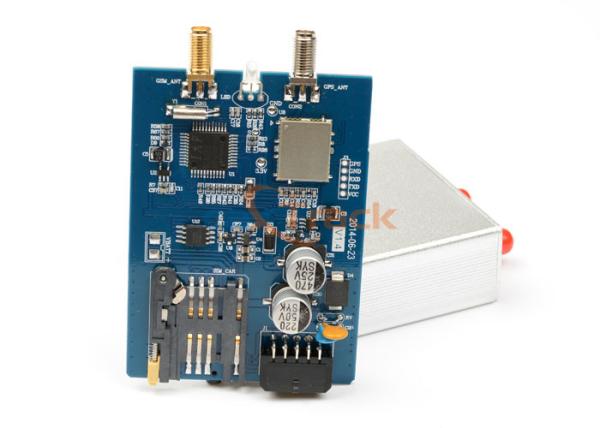

9 - 36V White Motorcycle GPRS GPS Tracker Devices Hidden Simcom 900
Performance Parameters:
Content | Specs. |
Dim. | 87 * 57 * 25 (mm) |
Weight | 0.459kg |
Network | GSM/GPRS |
Band | 900/1800/1900MHz or 850/900/1800/1900MHz |
GPS chip | SiRF III chip |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V－36V |
Battery | Chargeable changeable 3.7V / 1.2Ah Li-ion battery |
Standby work current | < 30mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Description:
1. Temperature Car GPS Tracker Device Positioning and Tracking: Through the on-line Positioning Platform
or the cell phone to locates at times, and get the working status.
You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is a emergency happened on
the vehicle, you can put on the button and the installed device
will send out alarm to the authorized numbers.
3. Temperature Car GPS Tracker Device Remote controlling oil and circuit: you can control the oil and
circuit via the device by SMS in anywhere and anytime.
4. Remote Monitoring: In anywhere and anytime, call the phone number
in the device, when it connects, you can monitor the sound around 5
meter.
5. Temperature Car GPS Tracker Device Movement Alert
6. Overspeed Alert
7. Temperature Car GPS Tracker Device Geo-fence
8. Restart the device: send SMS to resume the default of device.
9. Auto Track: You can set up auto track by SMS or on-line
positioning platform.
10. Mileage statistics; ACC checking; cutting off power and alarm.
11. Compatible with the original anti-theft alarm: It will send SMS
alarm after the original anti-theft alarm warning.
12. Modify the IP and Port of Communication Protocol for different
on-line positioning platform
13. Change the Password
Send SMS: “password + old password + space + new password” to change the password. For example: Send SMS “Password123456
168168”. "password" as instructions, "123456"as old password,
"168168" as new password. Password must be six digits. Tracker’s
initial password is 123456. If there is no administrator number,
all number can change the password. If there is already an
administrator number, only the authorized number can change the
password.
Applications:
4s shop, car company, truck company, motorcycle company,GPS
producer, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, car repair shop,taxi company, bus
company.
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) power line 1 pcs
3) GSM antenna 1 pcs
4) GPS antenna 1 pcs
5) Installation cables 1 set
6) Usage instructions
7) Warranty card
8) Certification
2. optional configurations
1) Accessories (relay) for cut fuel/circuit
2) High capacity backup battery, it can works for 12h
3) Temperature sensor and fuel sensor
start up:
The indicator in the device can turn into red and blue color.
Insert the SIM card and install the tracker in the car, the red
indicator is on. In 10 seconds, the device will begin to work and
search the GSM/CDMA signals as well as the GPS signals. When the
device is communicating, the red indicator blinks very fast. The
blue indicator will keep flashing every 2 seconds when the GPS
module is in standby mode. When the blue indicator is not lighting,
the GPS module is working but hasn’t fixed position, after it has
fixed position, the blue indicator is lighting
