Africa Stable GPS Tracking Device Mini GPS Tracker For Trucks/Cars
Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP
supported
GPS Tracker Parameters:
| Working Voltage: | DC9-100V or 12-40V, optional. |
| GSM Chip: | MT6261 |
| GPS Chip: | AT6558R |
| MPS | 9486 |
| Working temperature: | ‘-20 ℃ to +70 ℃ |
| Storage temperature: | ’-40 ℃ to +80 ℃ |
| Working Humidity: | 5% to 90% |
| Power consumption: | Average power consumption<1W, power-saving status<2mW |

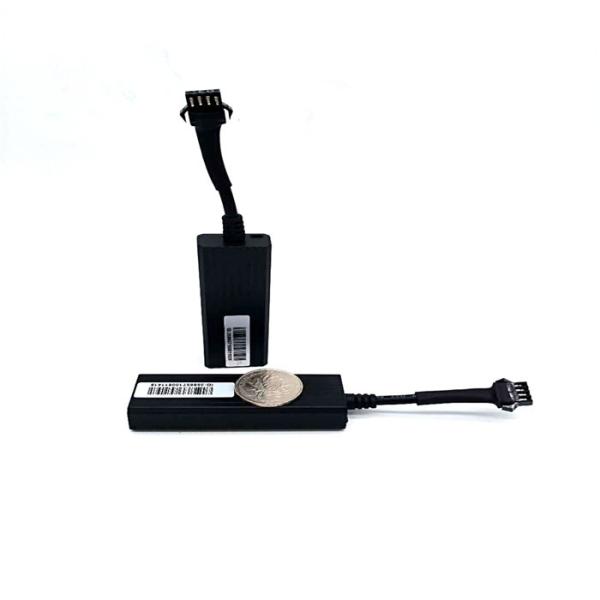

| GPS Tracker size: | 76mm*27mm*15mm |
| Packing size: | 80mm*125mm*40mm |
| Interface: | Power input, ACC input detection, cut off fuel circuit. |
| Communication band: | GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz |
| Weight: | 42g
|
Multi Mode Positioning: BD GPS LBS
Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Africa Stable GPS Tracking Device Mini GPS Tracker For Trucks/Cars
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current
position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26
10:25:55 |
| URL# | Google link query | GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gps-go.com,6006,0# | Set domain name | ok |
| Server,0,121.201.110.106,6006,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
| APN,xxxx# | Set APN | |
| APN,xxxxt,userAAA,passBBB# | Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
GMT,<A>,<b>[,C]#
example, GMT,E,8,0#
| Change time zone command | A:E/W, E east time zone, W west time zone, default: E B: 0～12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|
GPS Tracker Applications And Where you install it.
GPS Tracker Main Functions:
1. Real-Time Positioning:
TK003 GPS Tracker Device will get the real-time position message
and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status.speed
GPS Time, direction and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If illegal ignition alarm receives from GPS Tracker, you can remote
cut off the vehicle circuit, so that to avoid being driven away.
5. SOS Alarm
Users can press the SOS button on GPS Tracker under emergency
situations. GPS Tracker will send alarm message to manage system
and
Call police simultaneously.

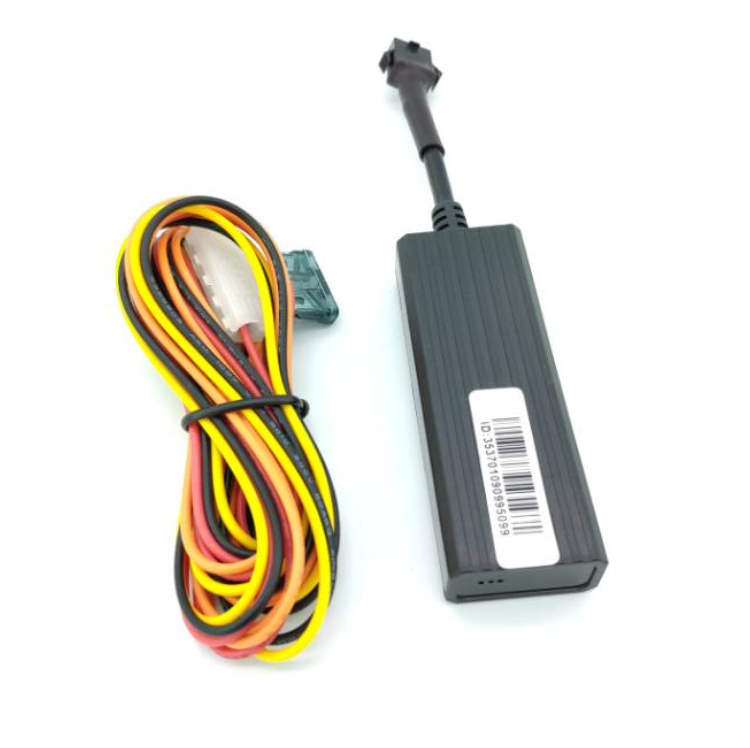

Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure connect the right connector)
2.1 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the receiving side of the device is face up and without metal
cover.
Note:The metal cover will lessen the receiving of GPS signals.
Africa Stable GPS Tracking Device Mini GPS Tracker For Trucks/Cars
FAQ:
How to use this GPS tracker?
1. Input SIM Card inside the GPS Tracker product.
2. Connecting GPS Tracker with power supply.
3. Put GPS Tracker device near a window or some open area waiting
for signal ready.
4. When all indicators lighted and flashed normally means GPS
Tracker works. now send SMS command to
communication network, you will receive a GPS Tracker status report
by SMS.
