High Accuracy External GPS 3G Tracker WCDMA Network GPS Tracker Device

Description:

3G GPS Tracker is one external GPS antenna Tracker Device with WCDMA or CDMA2000 3G Module And

Ublox GPS Module. And it can be used in any countries. The input voltage range is DC9V to 100V.

It supports control engine on or off and mileage statistics. 3G GPS Tracker contains 450mAh built in

rechargeable Li-ion battery. It also has some optional functions for example: SOS Alarm,

Voice monitoring,temperature sensor and fuel sensor.

Specification:

Product Type: 3G GPS Tracker

Antenna: External GPS GSM Antenna

Module: Seperate 3G And GPS Module

Model Name: CA-V1-3G

Size: 87*57*25mm

Shell: Black or White Metal

Location Accuracy: Less than 5 meters

Wide Input voltage: DC9V to 40V

Weight: 230g

Main Features descriptions:

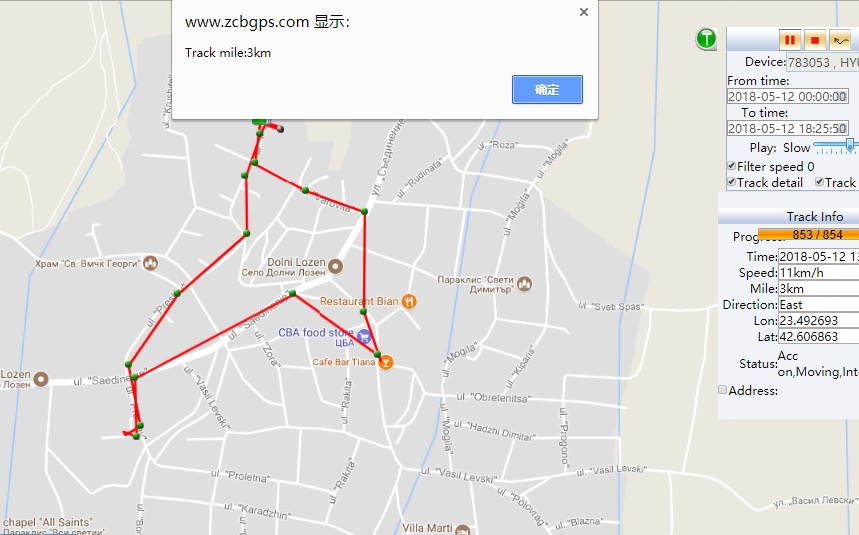

1. Real time track the location, when the igniton is on, the GPS Antenna receives GPS Signal and upload

the GPS Data to server via 3G module network. Then user can track the real time position.

2. Control engine on or off, 3G GPS Tracker device supports 12V and 24V relay. User can install it as below

then you can control engine on or off.

3. SOS alarm function, when you install the SOS Button for more than three seconds, the SOS message

will upload to server and send alart SMS Message to adminstrator's mobile phone number.

4. Voice monitoring, when customers open voice monitoring function, the administrator can dial the SIM

number of the 3G GPS Tracker device. then you can listen the voice around the device.

5. Temperature sensor and fuel sensor are the optional functions.

Installation:

Generally 3G GPS Tracker with four lines power cables, Red and black color lines are for power

Supply lines. Yellow line is for relay and green line is for igntion line of vehicle.

And there are two LEDs, blue LED is for GPS signal and red LED is for 3G signal status.

the best place you can install:

3G GPS Tracker Certificate:

GPS Tracker 3G device applications:

3G GPS Tracker Production Line:

FAQ:

Question 1: Can i pay it via paypal?

Answer: Of course ,but there will be 7% transfer fee.

Question 2: Can i check your demo account ?

Answer: Yes, our platform website is www.zcbgps.com, and the demo is test06, password is

123456, if you have any questions, you can contact me. my skype is gpstrackerzhao

shenzhen CarTracker Technology Co., Ltd was founded in 2009,it is one of the most professional manufacturers for gps tracker and mobile DVR product.Our company is located in Shenzhen city,Guangdong province,China.At present our GPS Tracker products are mainly exported to Southeast Asia,Africa,South America,The Middle East ,Europe and so on.

Our main products are Car GPS Tracker,Personal GPS Tracker,large battery GPS Tracker and 3G mobile DVR.Every year we develop new products to meet customer requirements.and they are certified by CE,ROHS,FCC and 3C certification bodies.

We have a Research and Development team of more than twenty engineers. Most of them have a master's degree and 12 engineers have more than 8 years work experience in the GPS Industry.we also have a group of professional sales and after sales team. they will provide after-sales and pre-sales technical support for you.

Our factory is located in Cuishan industrial area,we have about 2000 square meters of building area and more 200 production staff.they are mainly responsible for gps product production,testing and quality control.our monthly output is more 20000pieces.the factory has passed ISO9001,ISO14000 Certification.

Welcome to visit our factory and we look forward to the opportunity to cooperate.
