Automotive Realtime Mini 3G GPS Tracker Support WCDMA 2100MHz Network

Nowadays, more and more countries in the world stopped 2G GSM network and started 3G age, Shenzhen Cartracker Technology is one of the earliest 3G GPS vehicle tracker manufacturers in China, famous due to its cost-effective. We sell high quality GPS Tracker with very reasonable price.

Parameters:

Main Features:

1. Positioning and Tracking: Through the on-line positioning platform or the cell phone to locates at time

and get the working status. You can choose the positioning platform by yourself.

2. Remote control oil or circuit: you can control the oil or circuit via the device by SMS in anywhere and anytime.

3. Movement Alert: Send SMS to the device to start the movement alert function. when the vehicle is moving, the device will send the movement alart to all authorized numbers.

4. Overspeed Alert: Send SMS to the device to start the overment alert function. when the vehicle is overspeed. the device will send the overspeed alert to all authorized number.

5. Restart the device: send SMS to resume the default of device.

6. Auto Track: You can set up auto track by SMS or on-line positioning platform.

7. Modify the IP and Port of communication protocol for different on-line positioning platform.

Installation:

Install the tracker is hidden installation, you'd better to install it with the help of professional companies or workers authorized by the distributor. Please install it according to the following instruction.

1. To avoid the thief’s destruction, the tracker should be installed in a hidden place.

2. Don't put the tracker together with the emission sources, such as the parking radar system,

alarms and other vehicle-carried communication terminals.

3. You can fix the tracker with the cable tie, or glue it with wide strong sponge double-sided tapes.

4. Because the tracker has GSM and GPS antenna inside, please make sure the reception side of GPS is upward (facing the sky), and there is no metal shelter above the tracker. Suggestions are as follow:

a, Hidden area under the decoration board below the front windshield or back windshield;

b, Hidden area around the front panel

(with a surface made of non-metal materials);

Attention: If there is a metal insulation or a heating layer glued in the windshield, it will reduce the efficiency of GPS signal reception, and the GPS can’t work well, you need to find other places to install again.

Installation Diagram:

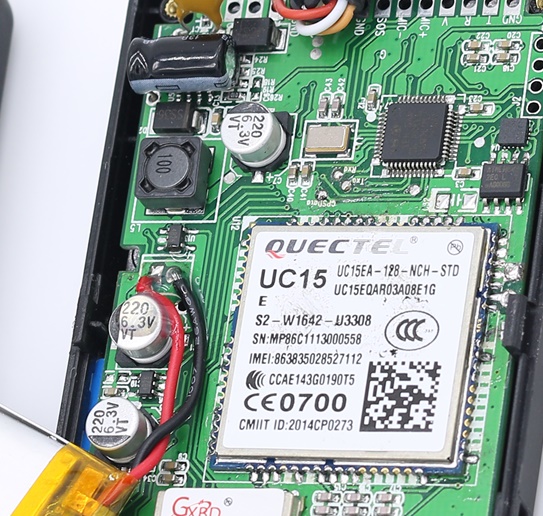

Picture:

Packaging Accessories:

1. Power 4P line 1pc (standard accessory)

2. User manual 1pc (standard accessory)

3. Electric relay 1pc (optional accessory)

Application:

1. Global positioning

2. Real Time monitoring

3. Vehicle locating

4. Timing tracking

5. Vehicle rental

6. Fleet management
