WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy

    Buy cheap WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy from wholesalers

    Buy cheap WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy from wholesalers
    • Buy cheap WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy from wholesalers

    WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy

    Ask Lasest Price
    Brand Name : caxtrack
    Model Number : CA-V1-3G
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    WCDMA / CDMA2000 Network Gps Auto Tracking With Fuel Sensor Function , 5M Accuracy


    WCDMA Or CDMA2000 Network 3G GPS Tracker Device With Fuel Sensor Function


    1. Performance Parameters:


    Content

    Specs.

    DIM.85*65*25mm

    Weight

    0.459kg

    Network

    WCDMA or CDMA2000

    Band

    2100MHz

    GPS chip

    Ublox chip

    GPS sensitivity

    -159dBm

    GPS accuracy

    5 m

    Time To First Fix

    Reacquisition 0.1s

    Cold status 45s

    Warm status 35s

    Hot status 1s

    Work Voltage

    DC 9V-80V

    Battery

    Chargeable changeable 3.7V / 1.2Ah Li-ion battery

    Standby work current

    < 30mA

    Storage Temp.

    -40°C to +85°C

    FunctionReal time Tracking

    Operation Temp.

    -20°C to +70°C

    Humidity

    5%--95% non-condensing


    2. Setup


    A. Set administrator
    Send SMS “setadmin123456” to the device, it will make you as administrator number. Delete the administrator number from the administrator cell phone, it will be back to no administrator.


    B. Add the number

    If there is an administrator, only the administrator can add number to the tracker . Send SMS “admin123456 13612345678”. "admin" as instruction, "123456" as password, "13612345678" as added number.


    C. Delete the number

    If there is an administrator, the administrator can delete number to the tracker . Send SMS “noadmin123456 13612345678”. "noadmin" as instruction, "123456" as password, "13612345678" as deleted number.

    If the administrator deletes his own number, the tracker is back to the no administrator, and the record numbers deleted automatically.


    3. Operation commands:


    A. Control Oil
    Send SMS “stopoil+password” to control oil.

    For example send SMS: stopoil123456
    "stopoil" as instructions, "123456"as password.
    To supply the oil again, send SMS “supplyoil+password” to the device.
    For example, send SMS “Supplyoil123456” to the tracker. "Supplyoil" as instruction, "123456" as the password.


    B. Control Circuit
    Send SMS “stopelec+password” to control circuit.

    For example send SMS: stopelec123456”.
    "stopoil" as instructions, "123456" as the password.
    To supply the circuit again, send SMS “supplyelec+password” to the device.
    For example, send SMS “Supplyelec123456” to the tracker. "Supplyelec" as instruction, "123456" as password.


    C. Monitor mode
    There are three mode for monitor.

    1) All Monitor Mode: Send SMS “AllMonitor” to the device, the device will return to this mode. In this mode, any number can monitor this device.

    2) Restrict Monitor Mode: Send SMS “RestrictMonitor” to the device, the device will return to this mode. In this mode, authorized number can monitor this device.

    3) Close Monitor Mode: Send SMS “CloseMonitor” to the device, the device will return to this mode. In this mode, all number cann’t monitor this device.


    D. Movement alert
    Set up: The user can send SMS “Move + password” to the device, then the device will reply move ok!” .In case of such a movement, it will send SMS “Move” along with a Geo-info to the number.

    For example, send SMS “Move123456” to the device. "Move" as instructions, “123456”as password.
    Cancel: Send SMS “nomove+password” to deactivate the movement alert.


    E. Overspeed alert
    Set up: Send SMS “speed+password+space+080” to the device (support the speed is 80km/h).

    For example, send SMS “speed123456 080”. "speed" as instructions, "80" as limit speed, “123456”as password.

    Cancel: Send SMS “nospeed+password” to deactivate the overspeed alert.


    4. Main Functions:

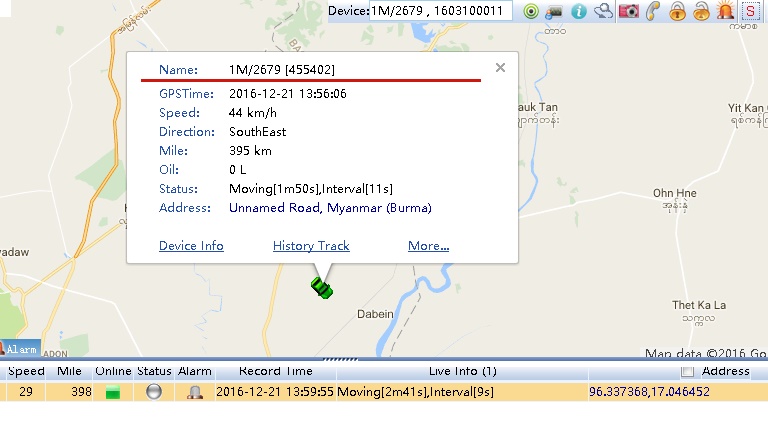

    A. Real Time Tracking


    B. History Track


    C. Remote control the engine via relay


    D. Fuel Sensor (Optional)


    E. Power Off Alert


    F. SOS Alert (Optional)


    5. Picture






    6. Applications:


    4s shop, car company, truck company, motorcycle company,GPS producer, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, car repair shop,taxi company, bus company.


    7. Product Configuration:


    1. Standard configuration


    1) main device 1 pcs

    2) power line 1 pcs

    3) GSM antenna 1 pcs

    4) GPS antenna 1 pcs

    5) Installation cables 1 set

    6) Usage instructions

    7) Warranty card

    8) Certification
