Motorcycle GPS Track Solution Support GT06 Protocol And Blind Area
Repay
Performance Parameters:
Content | Specs. |
| Product Name | Motorcycle GPS Tracker |
Dim. | 90*45*13.8mm(L*W*H) |
| Application | Motorcycle,E - bike,Car |
Weight | 0.04kg |
| Protocol | GT06 Protocol |
Network | GSM/GPRS/2G |
Band | 900/1800Mhz |
GPS chip | MTK Chip |
GPS sensitivity | -159dBm |
GPS accuracy | High Accuracy |
voltage input | 9.5－39.9DCV input |
Working currency | 20mA/12V |
Storage Temp. | -40°C to +85°C |
| Functions2 | Remote cut off engine |
Operation Temp. | -20°C to +70°C |
Humidity | 20%--80% RH |
Description:
- Motorcycle GPS track Device.
- GSM 900 / 1800MHZ Quad-band;
- GPS Track Solution
- Anti - theft Real time tracking
- Motorcycle GPS Tracker Support Remote cut off engine;
- ACC Check And Vibration alarm
- Mobile Phone app track
- Built-in vibration sensor ,burglar alarm
- Blind Area Repay
- Motorcycle GPS Tracker Geo-fence alarm

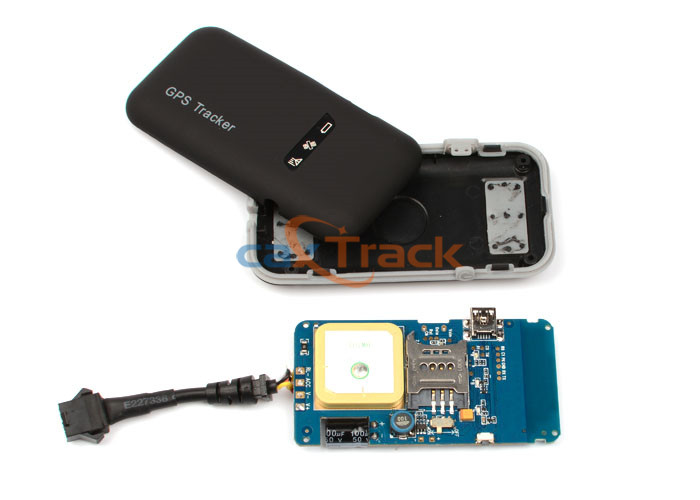

Detail Pictures:
Method of Installation
1.Preparation before installation
1.1 Open the packing box to check whether the type of device is
correct and whether the accessories are included, or else please
contact your distributor.
1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM
card.
1.3 Installing SIM card.
LED Indicator:
1 Red Led-( Power status indicator)
Led Status | Meaning |
Quick Flashing | Working normally (working by backup car battery) |
Slow Flashing | Working normally (working under battery of device) the device will
change to work by own battery while backup battery had been cut
down. And it will alarm. |
bright status: | Device Error |
2 Blue Led Light-( GSM status indicator)
Led Status | Meaning |
Quick Flashing | Working normally, Uploading GPRS data to platform server. |
Slow Flashing | Working normally, Receive GSM signal normally |
Continuously in bright status | No GSM signal |
3.3 Green Led Light – (GPS status Indicator)
Led Status | Meaning |
Flashing | Working normally. GPS located. |
Continuously in bright state | Searching GPS signal |
Device wiring diagram:
Applications :
4s shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- CA-V2B Device 1pcs
- Power Cable (4 Line) 1pcs
- Color Box 1pcs
2. Optional accessories
1. Relay DC12V
2. Rechargeable Li-ion Battery(Built-in)
