Rs232 18mm Gps Fuel Sensor For Truck Tank Accuracy Cuttable Fleet
Management
CLS2 Capacitor motor oil level sensor combined capacitor sensor and
liquid level sensor.The product not only contain the features of
high precision measurement and maintenance-free, at the same time
it doesn't influenced by temperature and medium.It can be
automatically measuring error caused by different temperature or
medium for precise compensation,achieving the purpose of accurate
measurement.
Performance index
| Examination area | 100~1000mm |
| resolution ratio | 0.1% |
| Measuring accuracy | 0.1% |
| Maximal error of measure | 1mm |
| heat-resistant | -40~150 |
| Diameter | Φ18mm |
| Output signal | 4~20mA,0~5V, RS485, RS232, CAN bus |
| Voltage supply | DC7~42V |
| Rated supply | 0.1W |
| Fixed type | Screw installation M20X1.5 OR Flange mounting |
| Pressure range | -0.1MPa ~ 0.1 MPa |
| ambient temperature | -40~85℃. |
Why choose GPS fuel level sensor?

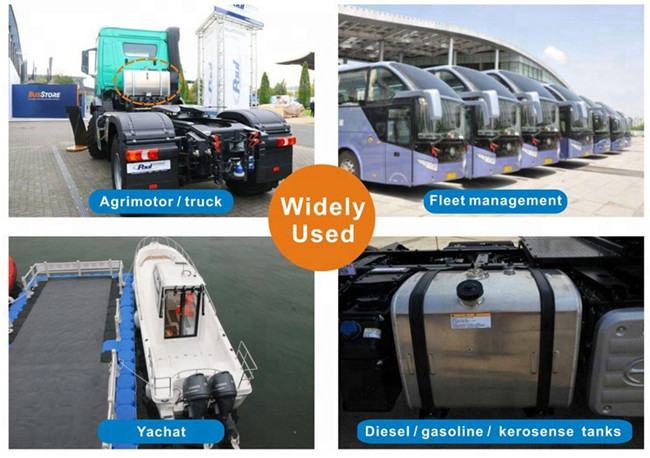

• Suitable for Vehicle, truck, coach, agrimotor, GPS fleet
management, GPS tracking system, generator set, construction
machinery and more
• Signal output with high-resolution :1mm
• Continuous and steady output signal
• Length could be trimmed in the field
• The parameters can be conveniently reset and recalibrated with an
external calibrator
• Fits different tank sizes, minimizing customer inventory level
• Used for diesel, gasoline and kerosene level measuring
• Compatible with GPS market leading GPS tracker and software to
monitor vehicle fuel level at any time
Rs232 18mm Gps Fuel Sensor For Truck Tank Accuracy Cuttable Fleet
Management
1. Capacitive fuel level sensor used in truck tank
"GLTV7 was successfully installed and working well. I plan to
purchase another batch of my new car," said Romanian customer
Jason. He owns his own fuel truck company with a total of 200
trucks.
2. Refueling truck
Kenyan customer Bruce gave his customer an online oil level
monitoring program. After comparing multiple samples, he finally
chose GLTV7. "The output of the product is working stable in
different environments," Bruce said.
Rs232 18mm Gps Fuel Sensor For Truck Tank Accuracy Cuttable Fleet
Management
The equipment can be used cooperatively with GPS vehicle
positioning terminal and other terminal to make vehicle positioning
and fuel consumption management system.It can evaluate the usage of
the vehicle and the driver's driving level,monitor gas up situation
of vehicle,precise calculate hundred kilometers fuel
consumption,completely eradicate the phenomenon of oil stolen,oil
spilling,detouring,make extra money,private use of government
vehicles,falsely making receive.
Calibration
This sensor adopt high-speed MCU of CNC technology, adopting
self-calibration Calculation , and leaves out the complicated
Manual calibration while using. in normal circumstance, the sensor
can directly be used in the measurement of the diesel, if need to
calibration, you can use the three following ways to complete.
(each can work).
