TK003 Mini Size GPS Car Tracker With High Sensitivity For Motorcycles And E-bike


1. Specification:
Frequently used commands

2. TK003 GPS Tracker Function:


TK003 Mini Size GPS Car Tracker With High Sensitivity For Motorcycles And E-bike
3. Product Appearance:



4. GPS Tracker Wire Definition:



5. GPS Tracker LED Description:



TK003 Mini Size GPS Car Tracker With High Sensitivity For Motorcycles And E-bike

Installation instructions

You need to choose somewhere that it won't be found, because the whole point of fitting covert

GPS vehicle tracker is the secrecy element.

1. Your device has built-in GSM antenna and GPS antenna. During installation,

please make sure the receiving side face is up ; any high power devices such as reversing radar,

anti-theft device or communication equipment would affect the signal of the device.

2. All metallic cases of the windshield will attenuate the signal on the tracking device.

It’s simply due to the shielding effects of the metal compound of the case.

3. The device should be fixed into position with cable ties or wide double-side tape.

Working description
TK003 Mini Size GPS Car Tracker With High Sensitivity For Motorcycles And E-bike

1 The device is ON automatically when connect to long power supply. The red LED will be always on.

2 Put the switch on when not connect to long power supply. The red LED is slowly flashing.

3 When searching GSM (yellow LED)and GPS(Blue LED) signal, the leds will be quickly flashing.

4 When device start to work normally, the GSM (yellow)and GPS(Blue) LEDs will be slowly flashing,

The main parameters

Model: CA-V4/TK003 functions:

protocol: concox GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off the power/fuel
input power: 9-80V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: TD1030 6) platform is free in the first year .

Please read the manual carefully before use the GPS Tracker,so that you can install the device correctly and activate it quickly on the internet. The outlook and true color are subject to the actual product.

1．Accessories:

• Power cable

Red＆black cable for power
Orange cable for ACC,ignition
Yellow cable for Relay

2. Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-90V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:82(L)×25(W)×13(H)mm

4.Device status indicators
4.1Connect DC 9-90V power supply and the red LED will light continuously.

4.2The green LED glistens when searching the GPS signals. When GPS works, the LED lights continuously.
4.3The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LED light long bright. No GSM signal, the blue LED flashes.
GPS LED not fixed, flashes(0.2 sec/2 sec),Positioning long bright；

GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long bright；
Power LED: long bright;
4.Installation
4.1 Preparation for the installation

4.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.

4.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

4.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4.1.4 Put back the front cover and screw it up.
4.1.5 Connect the device to the 9-36Vpower supply.(the red LED constant glow)
4.1.6 Install the device in the hidden place of the car；

The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.

4.2 Installation

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as followings:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.

Note:The metal cover will lessen the receiving of GPS signals.6. The device connecting requirements.
5. Device wiring requirements
5.1 The device power supply is DC 9-80V. The red line is positive pole while the black line is negative pole.

5.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
5.3 When finishing the power supply wire connection, please make the plug of power supply to the device

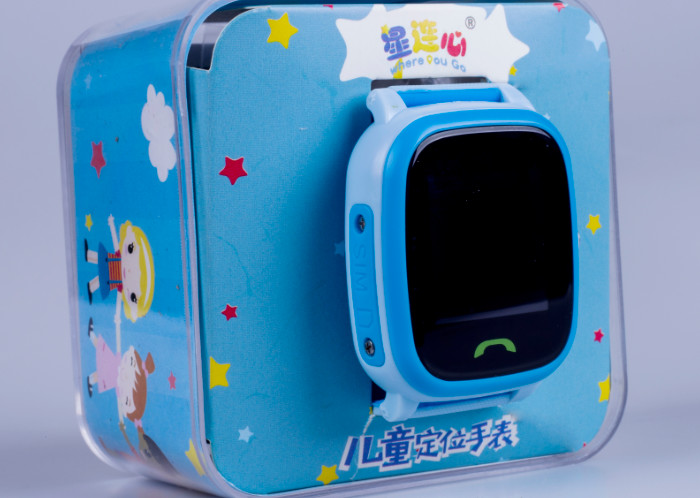

Other GPS tracker pictures
