    Container Lock Big Battery GPS Tracker With Super Magnet FB500 For Truck

    Ask Lasest Price
    Brand Name : caxtrack
    Model Number : FB500 CA-P10
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    Container Lock Big Battery GPS Tracker With Super Magnet FB500 For Truck


    Container Lock Big Battery GPS Tracker With Super Magnet FB500 For Truck

    Performance Parameters:

    Content

    Specs.

    Product NamePortable GPS Tracker Device

    Dim.

    12(L) x 6.5(W) x 5(H)cm

    Weight

    450g

    Functions

    Real time Tracking

    Band

    900/1800/1900MHz

    GSM chip

    MTK Chip

    GPS sensitivity

    -159dBm

    GPS accuracy

    5 m

    Time To First Fix

    Reacquisition 0.1s
    Cold status 45s
    Warm status 35s
    Hot status 1s

    Work Voltage

    DC4.1+/-0.1V

    Battery

    Chargeable changeable 3.7V / 15000 0Mah Li-ion battery

    Standby180 days

    FRID Function

    yes



    Functional features:

    1. Portable GPS Tracker Device support E-fence function.
    2. Inbuilt Super Magnet
    3. Standby Time: 180days
    4. Sleep model ,20000MAH battery.
    5. Long standby time
    6. A-GPS(LBS+GPS) solutions,shorter locating time,higher precision.
    7. Low battery alarm.

    8. Inlayed 3D accelerator,moving and static state, energy smart.
    9. Change the time interval of uploading automatically according to the speed.
    10. Admin checks the altitude and longitude and location information by texting.
    11. Portable GPS Tracker Device Alarm : Drop Alarm,Movement Alarm,Overspeed alarm
    12. LED Indicator: Green LED->GPRS Work status ,Blue Led ->GPS Work status


    Overspeed alert:
    1 Set up: Send SMS: “speed+password+space+080” to the unit (suppose the speed is 80km/h), and it will reply “speed ok!”. When the target moves exceeding 80 km/h, the unit will send SMS :”speed ALARM !+ Latitude and longitude” to the authorized numbers every 5 minutes.

    2 Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm, tracker will reply “nospeed ok”.

    Remark: The recommended speed should be not less than 50km/h. For below that rate, it will be effected the accuracy by gps signals drift etc.

    2. Working Principle:
    1). Load the goods, Authorize the ID cards, Swipe the card and lock the door with JT701
    2). On the road: JT701 will upload the position to the server, you can monitor it in computer or mobile in real time
    3). Desitination: Swipe the card to unlock JT701 (or unlock with password via SMS, unlock with command via software)
    4). Reports: Who, When, Where unlocked, trace, can be checked at any time
    5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence


    ItemNote
    Size195mm x 114mm x 37mm
    Weight700g( Include main unit, antenna, battery, shell)
    MaterialEngineer plastic
    GPS ModuleUblox MAX-7Q
    GSM moduleQuectel M35
    Working temperature-20°C -- +60°C
    Store temperature-40°C -- +80°C
    Humidity5%-99%
    Standard batteryRechargeable battery 15000mAh
    Average working current<90 mA
    Average current stand by<100uA
    Waterproof standardIP67
    Transmission modeSupport TCP(GPRS) or SMS(message)


    Applications:

    1. Bus/Police Car/Taxi
    2. Container/cargo/asset tracking

    Product Overview

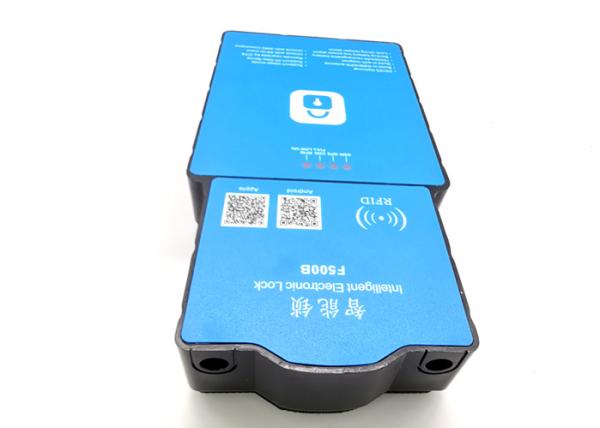

    About GPS Container Lock:

    GPS lock is robust lock together with GPS/GSM/3G and RFID technology, with build-in 6000mAh battery, it self powered to monitor all kinds of access point, special for cargo/asset/container/trailer and truck real-time tracking and monitoring.

    Size
    140mm*102mm*35mm
    GPS Chip
    U-Blox 7Q
    Body
    Aluminum alloy
    Application
    Cargo Container Security
    Shackle
    304 stainless steel
    Certification
    CE, RoHS,IP67
    Power Input
    DC 5V / 3A
    Warranty
    1 years
    GPS Accuracy
    5 m
    Interval Time
    Adjustable
    GPS Start Time
    32s(cold), 1S(hot)
    MOQ
    1 Unit
    GPS Sensitivity
    -160dbm
    Battery
    Samsung 6000mAh
    GSM
    850/950/1800/1900 MHZ
    API/Protocol
    Available

    Feature & Benefits:

    1.Robust lock, physical protection
    2.Real-time tracking and remote locking
    3.Real-time lock location and status
    4.Alerts notify for break-in attempts
    5. Feature rich on-line platform provides real time management, analysis reports, alerts, lock status
    6. Easy install and use

    Gurantee:

    1. All of our product is free to use the Tracking service server in 24 hours each day
    2. All of our product there is a 2 year quanlity assurance.
    3. Sample fee will not be returned.


    Product Configuration:

    1. Standard configuration

    1) Portable GPS Device 1 pcs
    2) Charger 1 pcs
    3) USB cables 1 set
    4) English Manual 1 set
    5) Magnet
