TK003 Hidden Car GPS Tracker With Battery And Relay Functions
Motorcycle GPS Locator
Please read the manual carefully before use the GPS Tracker,so that
you can install the device correctly and activate it quickly on the
internet. The outlook and true color are subject to the actual
product.
1．Accessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
2 Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:76(L)×26(W)×19(H)mm
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported
4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
TK003 Hidden Car GPS Tracker With Battery And Relay Functions
Motorcycle GPS Locator
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current
position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26
10:25:55 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gw.carposition.net,8005,0# | Set domain name | ok |
| Server,0,120.14.248.12,8205,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
| Change time zone command | GMT,<A>,<b>[,C]#
| A:E/W, E east time zone, W west time zone, default: E B: 0～12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
For example, GMT,E,8,0#
|
TK003 Hidden Car GPS Tracker With Battery And Relay Functions
Motorcycle GPS Locator
Our Company:
Shenzhen Cartracker technology company was founded in 2009, Our factory located in
Cuishan industrial park of Shenzhen China,we have about 2000 square
meters of building
area and more 200 production staff, a team of 25 software and
hardware engineers and a 12
people super sales team, during the last 8 years rapid development,
we are enter the top 10
influential GPS Tracker suppliers in China, in China, we have many
cooperation with super
government projects meanwhile our products sells to a large number
of customers from more
than 50 countries.
FAQ:
1. Where is your factory?
Answer: Our factory is in Dongguan City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 50mAh Li-ion battery.
4. What kinds of GPS Chip you use?
Answer: we use MTK3336 Chip.
TK003 Hidden Car GPS Tracker With Battery And Relay Functions
Motorcycle GPS Locator

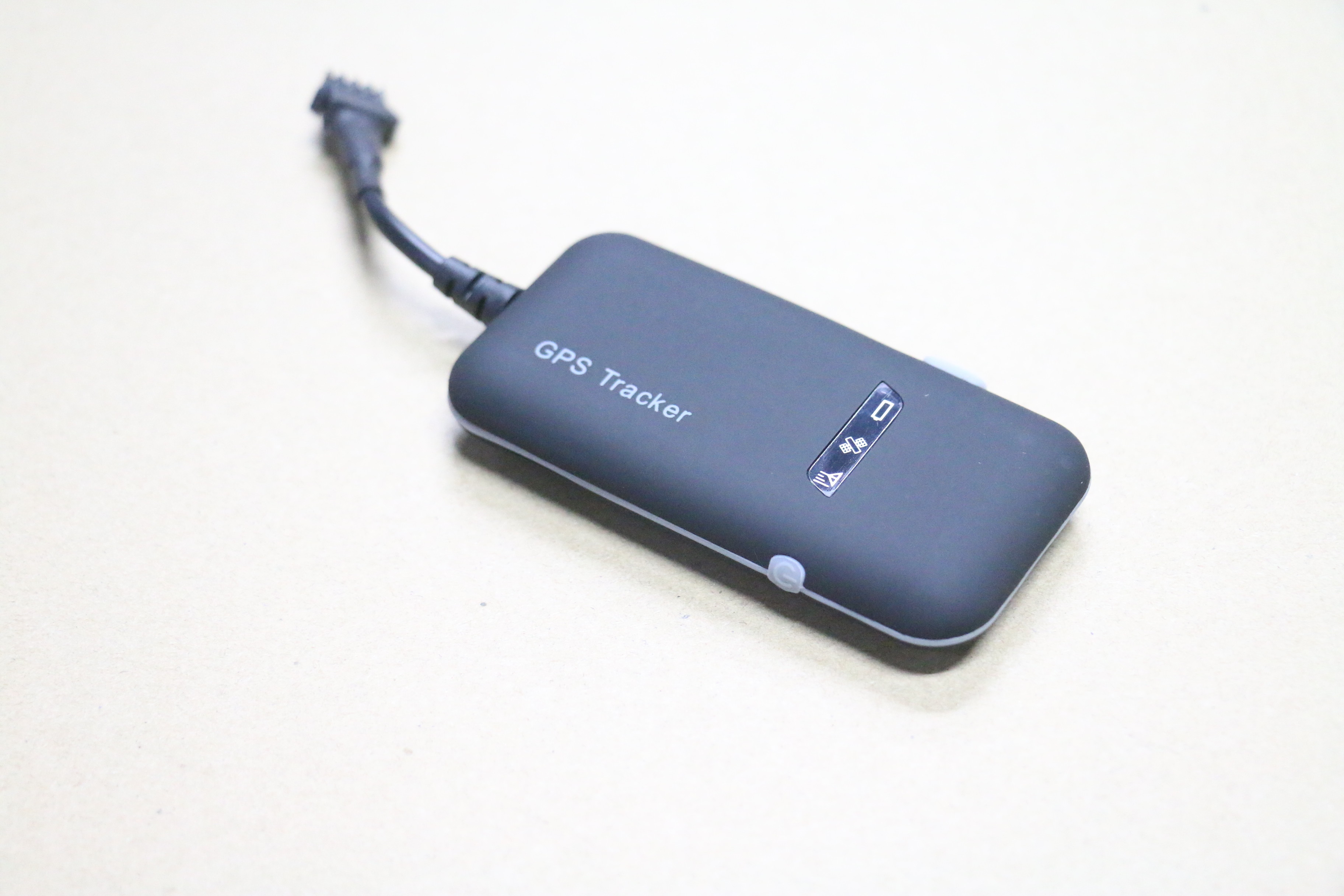

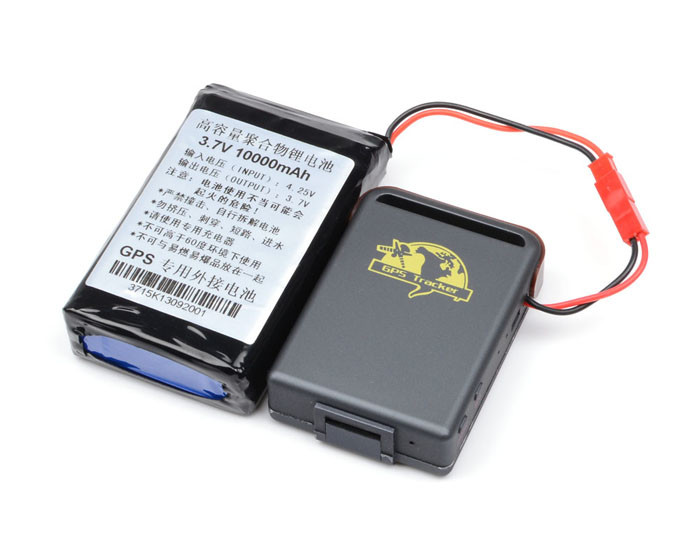

other GPS tracker pictures
