Cheapest Car GPS Tracker TK003 Wide Input Voltage Ebike Motorbike
Motorcycles
1. Specification:
Product Features
*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS
at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B
models, optional component), so as increase vibration, collision
and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
| 1 | Control Relay | RELAY,A#
A=0/1 0 stands for on 1 stands for off | |
| 2 | Check Relay status | RELAY# | |
| 3 | Open Vibration alert | SENALM,A,M# A=ON M=0～2 alert methods 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL | |
| 4 | Close Vibration alert | SENALM,OFF# | |
| 5 | Check Vibration alert status | SENALM# | |
| 6 | | | |
2. TK003 GPS Tracker Function:
TK003 parameters
G-sensor : BS250E
input power: 9-90V
power IC: SL3036H
GSM module: MT6261
GPS module: TD1030

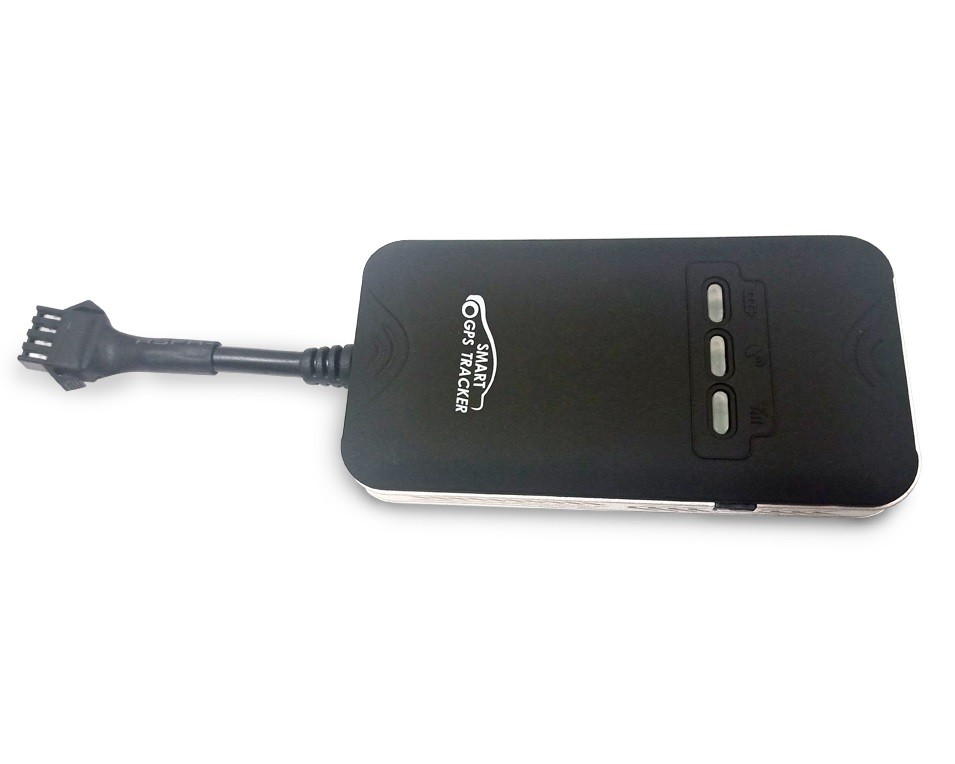

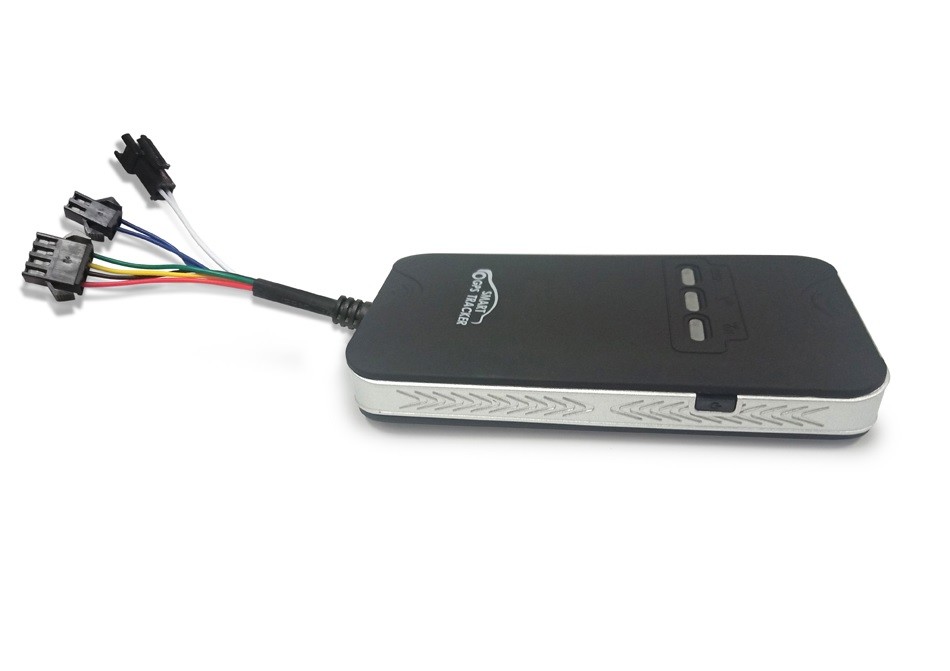

3. Product Appearance:Cheapest Car GPS Tracker TK003 Wide Input
Voltage Ebike Motorbike Motorcycles
- Information Contents
The specific contents are determined by the protocol numbers
corresponding to different applications.
- Information Serial Number
The serial number of the first GPRS data (including status packet
and data packet such as GPS, LBS) sent after booting is ‘1’, and
the serial number of data sent later at each time will be
automatically added ‘1’.
- Error Check
A check code may be used by the terminal or the server to
distinguish whether the received information is error or not. To
prevent errors occur during data transmission, error check is added
to against data misoperation, so as to increase the security and
efficiency of the system. The check code is generated by the
CRC-ITU checking method.
The check codes of data in the structure of the protocol, from the
Packet Length to the Information Serial Number (including “Packet
Length” and “Information Serial Number”) , are values of CRC-ITU.
CRC error occur when the received information is calculated, the
receiver will ignore and discard the data packet.
- Car GPS Tracker G17H With G-sensor BS250E And 9-90V Wide Input
Voltage
- Stop Bit
Fixed value in HEX 0x0D 0x0A.
- Details about Data Packet sent by Server to Terminal
The commonly used information packages sent by the terminal and
those sent by the server will be interpreted separately.
Login Message Packet
- Terminal Sending Data Packet to Server
The login message packet is used to be sent to the server with the
terminal ID so as to confirm the established connection is normal
or not.
TK003 Car GPS Tracker Wide Input Voltage Vehicle GPS Tracker With G
- Sensor
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
Cheapest Car GPS Tracker TK003 Wide Input Voltage Ebike Motorbike
Motorcycles
Product Configuration:
1. Standard configuration
1) Portable GPS Device 1 pcs
2) Power lines 1 pcs
