Car GPS Tracker TK003 With Free Platform and Mobile APP For Vehicle Fleet

1. protocol GT03

2. Technical parameter

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-90V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

Warm start≈32s

Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃～+70℃

9).Working humidity:20%～80%RH

10).Measurement:82(L)×25(W)×13(H)mm

4.Device status indicators

4.1Connect DC 9-90V power supply and the red LED will light continuously.

4.2The green LED glistens when searching the GPS signals. When GPS works, the LED lights continuously.

4.3The intermediate blue LED (GSM signal state)

GSM signal is normal, blue LED light long bright. No GSM signal, the blue LED flashes.

GPS LED not fixed, flashes(0.2 sec/2 sec),Positioning long bright；

GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long bright；

Power LED: long bright;

4.Installation

4.1 Preparation for the installation

4.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.

4.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

4.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.

4.1.4 Put back the front cover and screw it up.

4.1.5 Connect the device to the 9-36Vpower supply.(the red LED constant glow)

4.1.6 Install the device in the hidden place of the car；

The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.

2. TK003 FUNCTIONS

Alarm packet is consisted by adding status information to location packet,

so does the encoding format of the protocol.

1. Start Bit

For details see Data Packet Format section 4.1.

1. Packet Length

For details see Data Packet Format section 4.2.

1. Protocol Number

For details see Data Packet Format section 4.3.

1. Date Time

For details see Location Data Packet Format section 5.2.1.4.

1. Length of GPS information, quantity of positioning satellites

For details see Location Data Packet Format section 5.2.1.5.

1. Latitude

For details see Location Data Packet Format section 5.2.1.6.

1. Longitude

For details see Location Data Packet Format section 5.2.1.7.

1. Speed

For details see Location Data Packet Format section 5.2.1.8.

1. Status and Course

For details see Location Data Packet Format section 5.2.1.9.

1. MCC

For details see Location Data Packet Format section 5.2.1.10.

1. MNC

For details see Location Data Packet Format section 5.2.1.11.

1. LAC

For details see Location Data Packet Format section 5.2.1.12.

1. Cell ID

For details see Location Data Packet Format section 5.2.1.13.

1. Terminal Information
2. Car GPS Tracker TK003 With Free Platform and Mobile APP For Vehicle Fleet

One byte is consumed, defining various status information of the mobile phone.

indicates that the status of the terminal is: oil and electricity connected, GPS tracking is on, normal without any alarm, charge on, ACC is low, and deactivated.Example: 0x44, corresponding binary value is 01000100,

1. Voltage Level

The arrange is 0~6 defining the voltage is from low to high.

0: No Power (shutdown)

1: Extremely Low Battery (not enough for calling or sending text messages, etc.)

2: Very Low Battery (Low Battery Alarm)

3: Low Battery (can be used normally)

4: Medium

5: High

6: Very High

Car GPS Tracker TK003 With Free Platform and Mobile APP For Vehicle Fleet

1. GSM Signal Strength Levels

0x00: no signal;

0x01: extremely weak signal;

0x02: very weak signal;

0x03: good signal;

0x04: strong signal.

Example: 0x03 indicates the GSM signal is good.

1. Alarm/Language

0x00 (former bit) 0x01 (latter bit)

former bit: terminal alarm status (suitable for alarm packet and electronic fence project)

latter bit: the current language used in the terminal

TK003 parameters
G-sensor : BS250E
input power: 9-90V
power IC: SL3036H
GSM module: MT6261
GPS module: TD1030

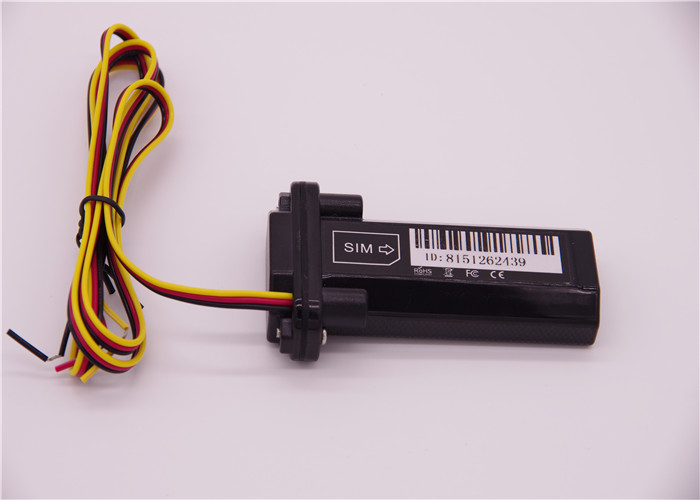

3. Product Appearance:

1. Information Contents

The specific contents are determined by the protocol numbers corresponding to different applications.

1. Information Serial Number

The serial number of the first GPRS data (including status packet and data packet such as GPS, LBS) sent after booting is ‘1’, and the serial number of data sent later at each time will be automatically added ‘1’.

1. Error Check

A check code may be used by the terminal or the server to distinguish whether the received information is error or not. To prevent errors occur during data transmission, error check is added to against data misoperation, so as to increase the security and efficiency of the system. The check code is generated by the CRC-ITU checking method.

The check codes of data in the structure of the protocol, from the Packet Length to the Information Serial Number (including “Packet Length” and “Information Serial Number”) , are values of CRC-ITU.

CRC error occur when the received information is calculated, the receiver will ignore and discard the data packet.

1. Car GPS Tracker G17H With G-sensor BS250E And 9-90V Wide Input Voltage
2. Stop Bit

Fixed value in HEX 0x0D 0x0A.

1. Details about Data Packet sent by Server to Terminal

The commonly used information packages sent by the terminal and those sent by the server will be interpreted separately.

​ Login Message Packet

1. Terminal Sending Data Packet to Server

The login message packet is used to be sent to the server with the terminal ID so as to confirm the established connection is normal or not.

Car GPS Tracker TK003 With Free Platform and Mobile APP For Vehicle Fleet

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.



Product Configuration:

1. Standard configuration

1) Portable GPS Device 1 pcs
2) Power lines 1 pcs
