TK003 Mini Smart GPS Tracker With Relay Optional Real Time Tracking
For Car

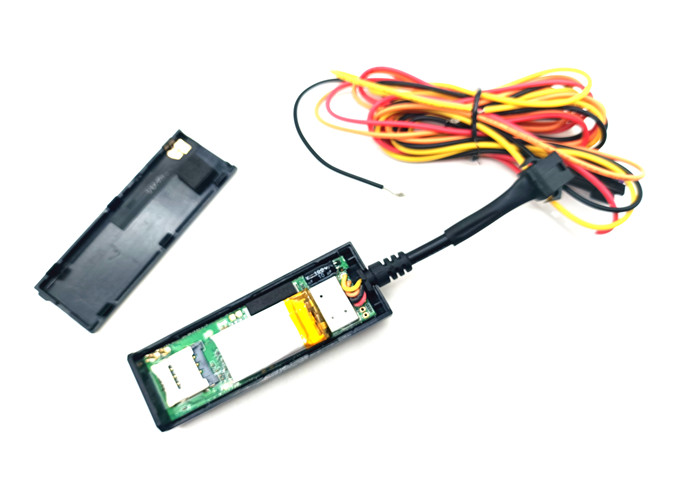

TK003 is a 4G compact GPS Tracker for vehicles, it is small in size
and with internal GPS/GSM antenna. It is designed for motorcycles,
cars, vehicles and scooters, the device itself supports 9-100
volts, and it has one digital output for power off relay connecting
and one digital input for ignition detect.
Product features:
2G GSM for glaobal use with GPS+LBS tracking system
Built-in switching power supply, exceed wide voltage input range:
9-100VDC;
GPS continuous GPS positioning, GPRS report regularly;
Support SMS message to check the location info;
Built-in vibration sensor, realization vehicle anti-theft
intelligently;
ACC the ignition signal detection,vehicle status prompted;
Built-in backup battery, realize the illegal cut the power line
alarm;
History Replay
You can track the history route of the device up to 6 months via
both the web platform and APP
Shake Alarm
Built- in vibration sensor, remote burglar alarm function, the
vehicle if there is abnormal vibration, immediately send alarm
information to the platform
geo-fence
when vehicle move in or out preset geo-fence, there is instant
alarm
Over speed
When vehicle speed reaches speed limit, there is instant alarm
History playback
user can playback vehicle past location details
Parameters
| Content | Specs. |
| Dim. | 76 x 26 x 15mm |
| Weight | 34g |
| Band | Quad-band, GSM frequencies 850/900/1800/1900MHz |
| Network | 2G GSM |
| GPS chip | MTK6261 |
| GSM/GPRS module | Ublox |
| GPS sensitivity | -162dBm |
| GPS accuracy | 5-20m |
| Time To First Fix | Cold status 38s |
| Warm status 32s |
| Hot status 2s |
| Working Voltage | 9-100V |
| Battery | 3.7V 180 MAH |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
Troubleshooting
If the terminal is unable to connect to the background server in
the first time installation, background shows off line, please
check the terminal installation
1.Check is the main power connection correct, pay attention not to
connect to the vehicle interior control wire.
2. Is SIM card installed correctly, please refer to the
installation instructions.
3.Please check is it power on, the switch at the back cover.
4. Check the LED status, please refer to the indicators
instruction.
5. Check whether the GPS has been positioning, if not please go to
the open air for the first time targeting.
Terminal shows off line in the background
First check equipment three lights are they normal, in the absence
of conditions to check the lights situation, you can check the
status of the SIM card, follow these steps:
1.Call the SIM card number of the device, see if you can hear the
sound of the call is connected.
2. Whether the vehicle is in the basement does not have the GSM
network signal.
3.Observation offline region, individual or all offline, to check
whether the operator's network problems.
4. Is SIM card no charges.
5.Whether GPRS service is canceled (by the end of the month).
6.Query parameter settings, view the GPRS transmission time
interval is correct.
TK003 Mini Smart GPS Tracker With Relay Optional Real Time Tracking
For Car
FAQ
1. Q: How long will it take to ship the order?
A: Within 3-10 working days if the goods in stock, after we got
your payment. Or we will reply you the updated ETD according to
your purchase quantity.
2. Q: How about the payment options?
A: West union, TT, paypal or others available.
3. Q: How long is your warranty?
A: One year free warranty and life-long maintenance.
4. Q: Can I make my own company logo and design on device case or
color box?
A: Yes, you can add your logo,it require quantity
