C003-01-4G Model Internal Antenna GPS Tracker Hidden Mini 4G GPS
Tracking Device

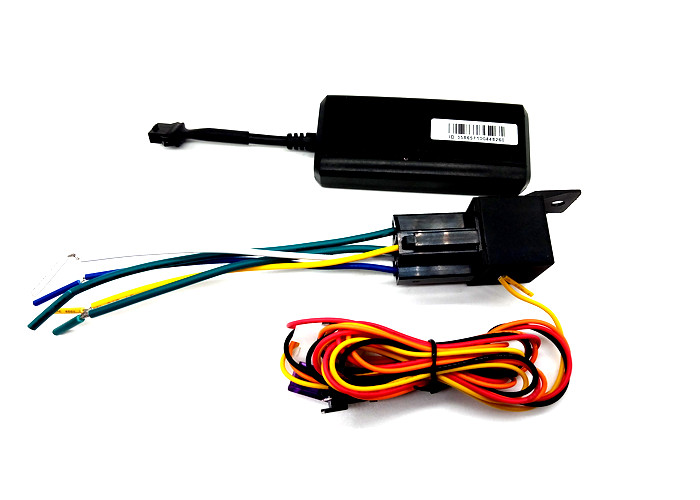

Accessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
C003-01-4G Model Internal Antenna GPS Tracker Hidden Mini 4G GPS
Tracking Device
Main Feature:
| * 4G 3G 2G bands |
| * Built-in acceleration sensor for vibration alarm and power saving |
| * Built-in battery, power disconnection alarm function |
| * Super wide working voltage input range: 9-100V |
| * The ACC ignition signal detection, vehicle status indicators |
| * SMS Arm / Disarm |
| * Watchdog function, reboot automatically after breakdown |
| * Suitable for Vehicles/Cars/Motorcycles/E-bike etc |
| * SOS ,microphone ,Relay is optional |
Parameter:
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
C003-01-4G Model Internal Antenna GPS Tracker Hidden Mini 4G GPS
Tracking Device
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s
model and accessories. If the model is wrong or the accessories not
complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED
constant glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card need input PIN when power on, please cancel it.
C003-01-4G Model Internal Antenna GPS Tracker Hidden Mini 4G GPS
Tracking Device
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive
pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the
metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the
plug of power supply to the device
Any issue please contact the local distributors.
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM
network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our
offering GPRS protocol, if you want our help to build a independent
platform, it will cost technical fee, details you can contact us
directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a
distributor, please share all your IMEIs of devices, and then we
can
make a distributor account for you, Available to manage your
devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here,
www.19gps.net,www.dyegoo.net and it support android and IOS, no
Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
