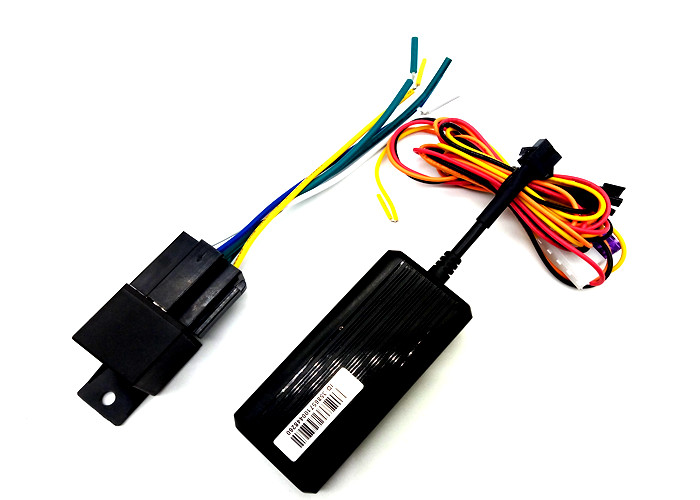

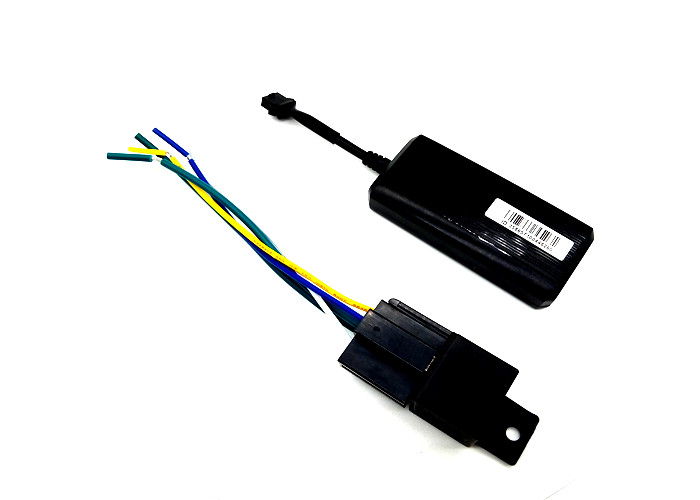

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    Buy cheap GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker from wholesalers

    Buy cheap GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker from wholesalers
    • Buy cheap GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker from wholesalers
    • Buy cheap GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker from wholesalers
    • Buy cheap GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker from wholesalers

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    Ask Lasest Price
    Brand Name : Cartracker
    Model Number : C003-01-4G
    Certification : CE ISO9000
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    Product description

    Working voltage
    DC 9~40 V
    Working temperature
    -20℃~+70℃
    Storage temperature
    -40℃~+85℃
    Working humidity
    20%~80%RH
    Main Chip
    MT 6261
    GPRS Module
    MTK high sensitivity chip
    Tracking sensitivity
    -160dbm
    Location accuracy
    <10m
    GSM frequency
    2G:GSM 850MHz,900MHz,1800MHz,1900MHz
    3G WCDMA 2100/1900/900/850MHz
    4G:FDD-LTE 800/850/900/1800/2100/2600MHz
    Device weight
    50g
    Device dimension
    90mm*40mm*15mm

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    Equipment parameters:

    Electric Speicifications
    Power supply mode: Battery power supply
    Working voltage range: DC 9V - 100V
    Working current: 12mA (24vDC)
    Built-in battery capacity: 200mAH

    Environmental Features
    Working temperature range -20℃ - 70℃
    Storage temperature range, low - 30 ℃ -80 ℃
    Working humidity range - 20%-80%RH

    Communication frequency band
    LTEFDD-LTE :B1/B3
     TDD-LTE :B38/ B39/ B40/ B41
    3GWCDMA:B1
     TD-SCDMA:B34/B39
     EVDO/CDMA2000 1x :BC0
    GSM/EDGEB3/B8

    Communication antenna - built-in antenna
    GPS/LBS Positioning Characteristics
    Cold start time - average 34 seconds
    Hot start time - average 2 second
    Sensitivity (tracking) -162DBM
    Positioning antenna - built-in antenna

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    4G Band

    Europe / Middle East / Africa / South
    Korea / Thailand EC25-E:
    LTE FDD: B1/B3/B5/B7/B8/B20
    LTE TDD: B38/B40/B41
    WCDMA: B1/B5/B8
    GSM: B3/B8
    North America EC25-A
    EC25-V
    LTE FDD: B2/B4/B12
    WCDMA: B2/B4/B5
    LTE FDD: B4/B13
    Australia/New Zealand/Taiwan/Brazil
    EC25-AU
    LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
    LTE TDD: B40
    WCDMA: B1/B2/B5/B8
    GSM: B2/B3/B5/B8
    Japan
    EC25-J
    LTE FDD: B1/B3/B8/B18/B19/B26
    LTE TDD: B41
    WCDMA: B1/B6/B8/B19

    GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

    Installation for SIM of device
    Preparation for the installation
    1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
    1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
    1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
    1.4 Put back the front cover and screw it up.
    1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
    1.6 Install the device in the hidden place of the car;

    The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.


    How to tracking ?


    The GPS devices support phone tracking.

    Four types Tracking way:

    A>: SMS + Map software;

    B>: PDA Cell Phone;

    C>: Real time tracking, and track via your computer;

    D >: IOS and Android APP
