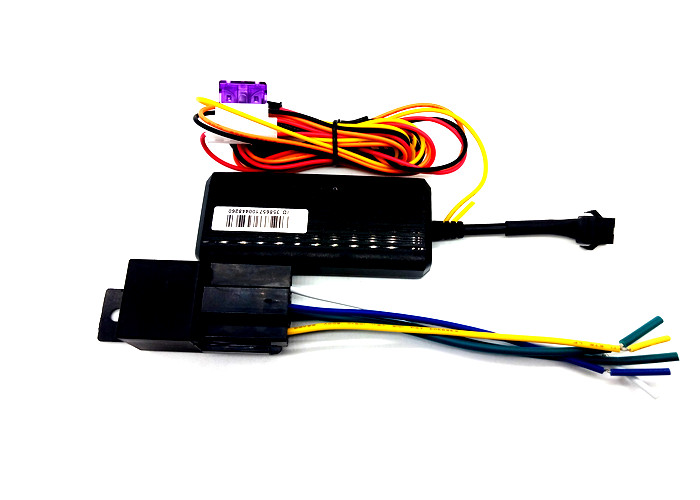

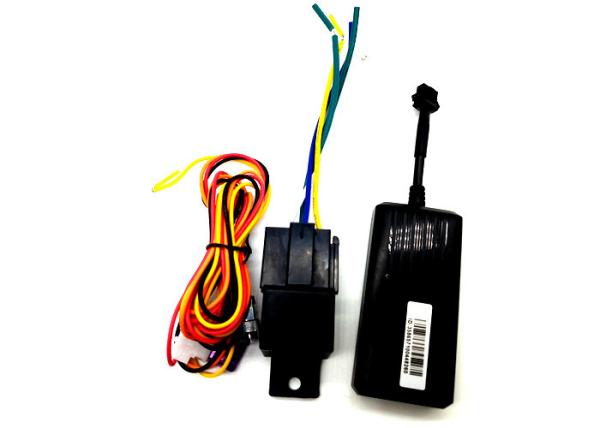

Anti-theft Tracking Devices 4G Wide Frequency Band Car Vehicle
Ebike Tracker 4G GPS GSM Tracker
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| Communication Character | |
| Module Brand/Chip Module | MT6261 |
| Band: | B1/B3/B8B34/B38/B390/B40/B41/BC0 |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
Anti-theft Tracking Devices 4G Wide Frequency Band Car Vehicle
Ebike Tracker 4G GPS GSM Tracker
Product feature
| * 4G 3G 2G bands |
| * Built-in acceleration sensor for vibration alarm and power saving |
| * Built-in battery, power disconnection alarm function |
| * Super wide working voltage input range: 9-100V |
| * The ACC ignition signal detection, vehicle status indicators |
| * SMS Arm / Disarm |
| * Watchdog function, reboot automatically after breakdown |
| * Suitable for Vehicles/Cars/Motorcycles/E-bike etc |
| * SOS ,microphone ,Relay is optional |
Functions
ACC Detection
remote power/circuit
DC detection
overspeed alarm
voice intercom
Geo-fence
Anti-theft Tracking Devices 4G Wide Frequency Band Car Vehicle
Ebike Tracker 4G GPS GSM Tracker
Description
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
1. Real-Time Positioning:
C003-01-4G model GPS Tracker Device will get the real-time position
message and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away.
Anti-theft Tracking Devices 4G Wide Frequency Band Car Vehicle
Ebike Tracker 4G GPS GSM Tracker
Q1:What's your payment terms?
A:We accept payment by T/T or western Union or paypal.
Q2: What is your delivery time?
A: Immediate shipment for sample order and 1-10days for bulk order.
Q3:Do your have your own platform?
A.Yes, we have our own platform and mobile app.It's named
365qczx.net and app named Track sense.
Q4:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our
customers benefit;
2.We respect every customer as our friend and we sincerely do
business and make friends with them,no matter where they come from.
