Mini 4G GPS Tracking System for Trucks GPS Tracker Motorcycle Truck
GPS Device
Product Parameters:
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| | Hot Start<2S(Open Sky) |
| Positioning Time | Warm Start<15S |
| | Cold Start<32S(Open Sky) |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |

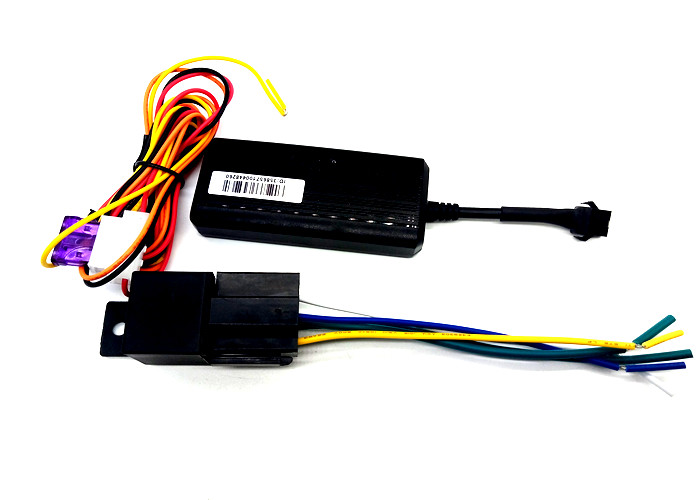

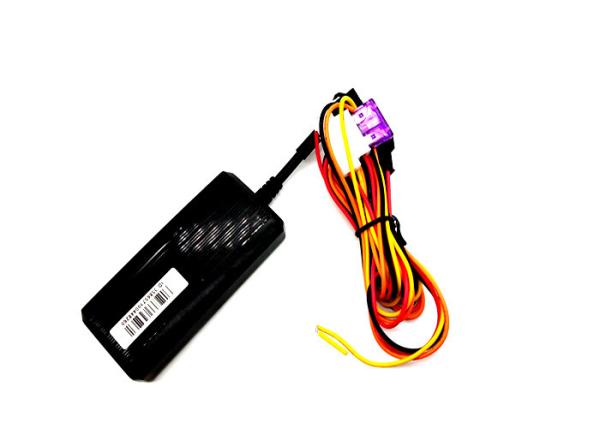

Accessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Mini 4G GPS Tracking System for Trucks GPS Tracker Motorcycle Truck
GPS Device
Specification
| Detail |
| Operating voltage | DC9-90V |
| Operating current | 22mA@12V |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
Main function
| 1. Remote power off function |
| 2. Real-time positioning function |
| 3. Anti-theft alarm |
| 4. Track playback function |
| 5. Vibration alarm |
| 6. Overspeed alarm |
| 7. Electronic fence function |
Mini 4G GPS Tracking System for Trucks GPS Tracker Motorcycle Truck
GPS Device
Feature:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
1. Real-Time Positioning:
C003-01-4G model GPS Tracker Device will get the real-time position
message and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away.
Mini 4G GPS Tracking System for Trucks GPS Tracker Motorcycle Truck
GPS Device
Our services:
1.Reply Time: All inquiries will be answered within 24 hours.
2. Payment Times: We accept payment by T/T or western Union or paypal.
3. Shipment Times: All orders can be shipped out within 1-3 working
days normally. Once the order is shipped out, we will send an email
to you include the track number and the package photos.
4. MOQ Limitation: No MOQ limit, 1 pc for sample checking is
available.
