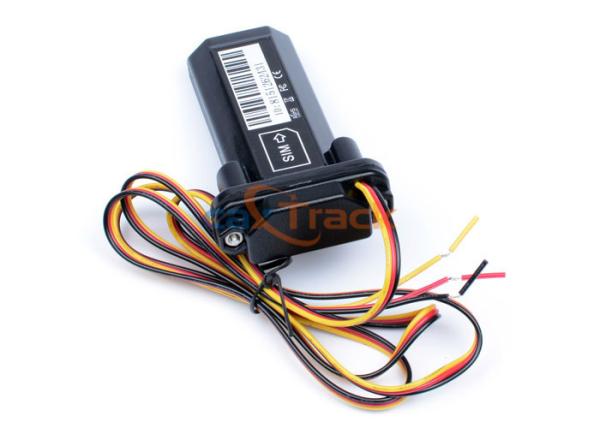

Compact Waterproof GPS Tracker High Sensitive

    Buy cheap Compact Waterproof GPS Tracker High Sensitive from wholesalers

    Buy cheap Compact Waterproof GPS Tracker High Sensitive from wholesalers
    • Buy cheap Compact Waterproof GPS Tracker High Sensitive from wholesalers
    • Buy cheap Compact Waterproof GPS Tracker High Sensitive from wholesalers

    Compact Waterproof GPS Tracker High Sensitive

    Ask Lasest Price
    Brand Name : caxtrack
    Model Number : CA-V5W
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    Compact Waterproof GPS Tracker High Sensitive

    Compact Waterproof GPS Tracking High Sensitive For Motorcycle


    Performance Parameters:


    Content

    Specs.

    Network

    GSM/GPRS

    Band

    850/900/1800/1900Mhz

    GPS chip

    UBLOX

    GPS sensitivity

    -159dBm

    GPS accuracy

    10m

    Time To First Fix

    Cold status 38s

    Warm status 15s

    Hot status 1s

    voltage input

    9-80V input


    Battery

    Build-in 3.7V 140mAh Li-ion battery

    Storage Temp.

    -40°C to +85°C

    Operation Temp.

    -20°C to +55°C

    Humidity

    5%--95% non-condensing

    Size90mm x 33mm x 15mm
    Weight67g ( Battery and Power cord Included )
    WaterproofIP67

    Description:


    1. GSM 850/900/1800/1900MHZ Quad-band
    2. GPS/GSM/GPS wireless network
    3. Its compact shape, Easy to install
    4. Waterproof design IP67
    5. Built-in GSM & GPS antenna
    6. Built-in acceleration sensor for vibration alarm and power saving
    7. Built-in battery,power disconnection alarm function
    8. Wide voltage input range (9-80V)
    9. Suitable for Vehicles/Cars/Motorcycles etc
    10. High sensitive GPS chipse
    11. Corner correction function
    12. Support ACC detection ,real-time reporting car status
    13. Arm / Disarm
    14. Web-based online tracking platform
    15. Watch dog function,reboot automatically after breakdown

    Detail Pictures:


    Installation:


    • To prevent theft of the device, it should be installed as covertly as possible. Covertly installation is suggested.
    • Avoid placing the device close to higher power electrical devices, such as reversing radar, anti-theft device or other vehicle communication equipment;
    • The device should be fixed into position with cable ties or wide double-side tape.
    • The device has built-in GSM antenna and GPS antenna.
    • During installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception.

    Five types Tracking way

    1. SMS + PC software;
    2. PDA Cell Phone;
    3. IOS and Android APP
    4. Real time tracking, and track via your computer;
    5. simple & useful real time tracking via our website;

    Applications :


    • Motorcycles / Cars / E-bike real-time tracking , Anti-theft
    • Vehicle rental / Fleet management / Heavy equipment etc.

    Gurantee:


    1. All of our product is free to use the Tracking service server in 24 hours each day

    2. All of our product there is a 2 year quanlity assurance.

    3. Sample fee will not be returned.


    Product Configuration:


    1. Standard configuration


    1 power cord 1pc
    2 device 1 set
    3 User manual 1pc
