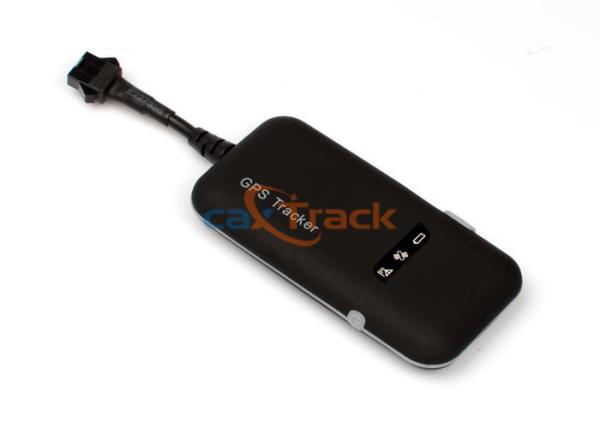

GSM / GPRS E-bike GPS Tracker ACC Detection , GPS Tracking
Anti-theft
Performance Parameters:
Content | Specs. |
| Product Name | Car GPS Tracker |
Dim. | 90*45*13.8mm |
| Application | Rental Car |

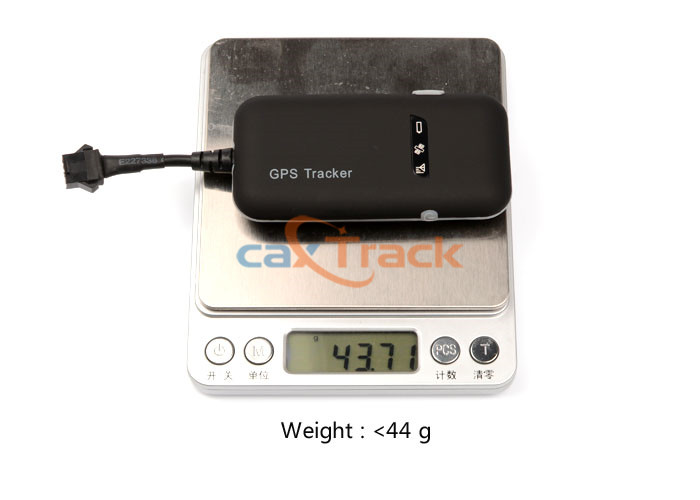

Weight | 0.04kg |
| Functions1 | ACC Detection |
Network | GSM/GPRS |
Band | 900 / 1800Mhz |
GSM chip | MTK |
GPS sensitivity | -159dBm |
GPS accuracy | 5-30m |
voltage input | 9.5－40DCV input |
Working currency | 20mA/12V |
| Application | Rental Car |
Storage Temp. | -40°C to +85°C |
| Functions2 | Mobile Phone app track |
Operation Temp. | -20°C to +70°C |
Humidity | 20%--80% RH |
Description:
- GSM GPRS Car GPS track Device.
- GSM 900 / 1800MHZ Quad-band;
- Anti - theft Real time tracking
- ACC Check
- Built-in vibration sensor ,burglar alarm
- Vibration alarm
- Mobile Phone app track and History Track.
- Car GPS Tracker Support Blind Area Replay.
- Car GPS Tracker Geo-fence alarm
- High Accuracy GPS Chip And Antenna.
- Car GPS Tracker Support Remote cut off engine;

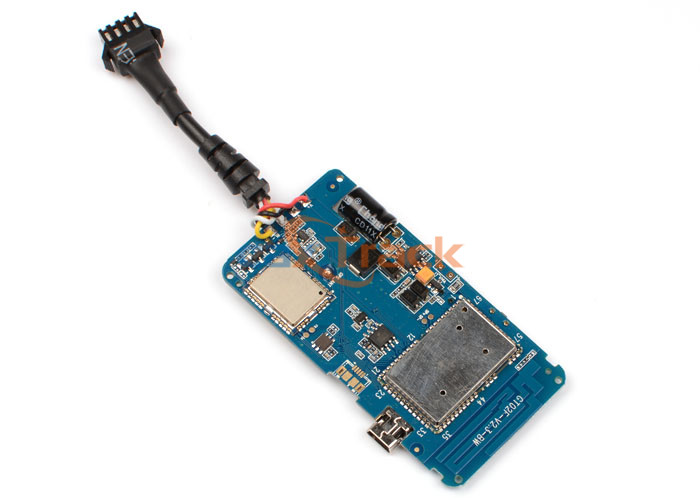

Detail Pictures:
Power code wiring:
The standard voltage is 9.5V-39.9VDC. Please use the power line
which provided by the manufacturer. The red line is the positive.
The black line is the negative. The negative should earth alone or
link iron during installing. Do not connect it to other ground
wire. And please make sure the device is powered on status. (Power
switch on down position)
Red Led light will flashing while device installed correctly, GSM
blue led light and GPS Green led light will flashing around 1
minutes later after getting signal.
LED Indicator:
1 Red Led-( Power status indicator)
Led Status | Meaning |
Quick Flashing | Working normally (working by backup car battery) |
Slow Flashing | Working normally (working under battery of device) the device will
change to work by own battery while backup battery had been cut
down. And it will alarm. |
bright status: | Device Error |
2 Blue Led Light-( GSM status indicator)
Led Status | Meaning |
Quick Flashing | Working normally, Uploading GPRS data to platform server. |
Slow Flashing | Working normally, Receive GSM signal normally |
Continuously in bright status | No GSM signal |
3.3 Green Led Light – (GPS status Indicator)
Led Status | Meaning |
Flashing | Working normally. GPS located. |
Continuously in bright state | Searching GPS signal |
Device wiring diagram:
Applications :
4s shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- Car GPS Tracker 1pcs
- Power Line 1pcs
- Neutral Box 1pcs
2. Optional accessories
1. Relay DC12V
2. Rechargeable Li-ion Battery(Built-in)
