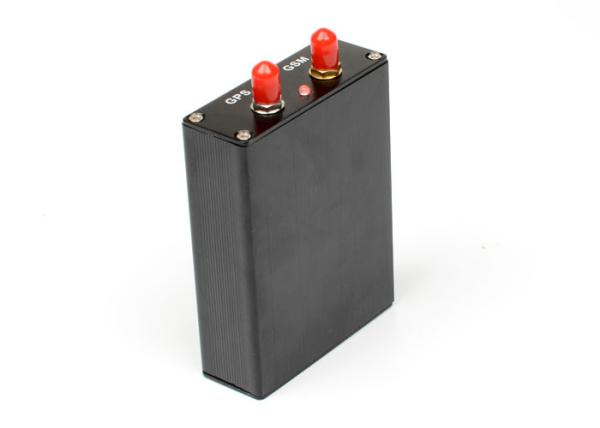

Professional Auto 3G GPS Tracker Cut Off Electricity / Fuel By
Relay
Performance Parameters:
Content | Specs. |
Dim. | 87 * 57 * 25 (mm) |
Weight | 0.459kg |
Network | GSM/GPRS |
Band | 900/1800/1900MHz or 850/900/1800/1900MHz |
GPS chip | SiRF III chip |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V－36V |
Battery | Chargeable changeable 3.7V / 1.2Ah Li-ion battery |
Standby work current | < 30mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Description:
1. Auto tracking
2. Triggering Emergency Alarm: When there is a emergency happened on
the vehicle, you can put on the button and the installed device
will send out alarm to the authorized numbers.
3. Car GPS Tracker Remote controlling oil and circuit: you can control the oil and
circuit via the device by SMS in anywhere and anytime.
4. Remote Monitoring: In anywhere and anytime, call the phone number
in the device, when it connects, you can monitor the sound around 5
meter.
5. Car GPS Tracker Movement Alert: Send SMS to the device to start the movement alert
function. When the vehicle is moving, the device will send the
movement alert to all authorized numbers.
6. Overspeed Alerm
7. Car GPS Tracker Geo fence: Set up a geo-fence for the device to restrict its
movements within a district. The device will send the message to
all authorized numbers when it breaches the district.
8. Restart the device: send SMS to resume the default of device.
9. Auto Track: You can set up auto track by SMS or on-line
positioning platform.
10. Mileage statistics; ACC checking; cutting off power and alarm.
11. Compatible with the original anti-theft alarm: It will send SMS
alarm after the original anti-theft alarm warning.
12. Modify the IP and Port of Communication Protocol for different
on-line positioning platform
13. mixer sensor is optional
14. Overspeed alert
Set up: Send SMS “speed+password+space+080” to the device (support the speed is 80km/h).
For example, send SMS “speed123456 080”. "speed" as instructions,
"80" as limit speed, “123456”as password.
Cancel: Send SMS “nospeed+password” to deactivate the overspeed
alert
Applications:
4s shop, car company, truck company, motorcycle company,GPS
producer, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, car repair shop,taxi company, bus
company.
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) GPS Device 1 pcs
2) power line 1 pcs
3) GSM antenna 1 pcs
4) GPS antenna 1 pcs
5) Installation cables 1 set
6) Usage instructions
7) Warranty card
8) Certification
2. optional configurations
1) Accessories (relay) for cut fuel/circuit
2) High capacity backup battery, it can works for 12h
3) Temperature sensor and fuel sensor
