GPS Tracker Device Control Engine Via Relay For Motorcycle And
Truck
Main Functions:
| NO. | Function |
| 1 | Real time Tracking |
| 2 | ACC Detection |
| 3 | Control Engine Via Relay |
| 4 | History Track |
| 5 | Mileage Statistics |
| 6 | Track Point Report |
| 7 | Power Off Alarm |
Feature Description:
1. Positioning And Tracking:
Via GPS Positioning,User Can track the car location,speed,routes
and mileage throught PC.

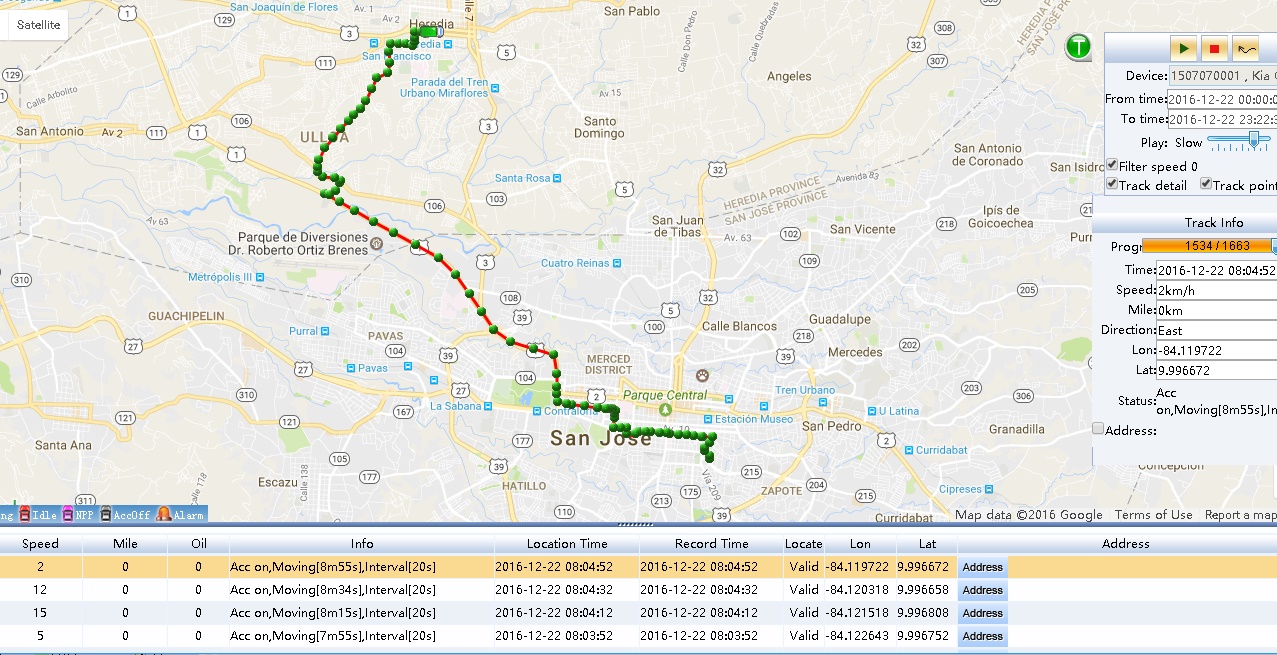

2. Playback Routes:
Can Check the car's routes and speed in recent 3 months.
3. Setting Function Via SMS:
Setting Function of device via SMS and check location via SMS.
4. Vibration Alert:
After setting, Device will send message and call user if theft
shock the car or drive the car away.
5. Ignition Detection:
Get vehicle status via ACC ignition detection.
6. Overspeed Alert:
When speed is more than the set speed, device will send message to
user.

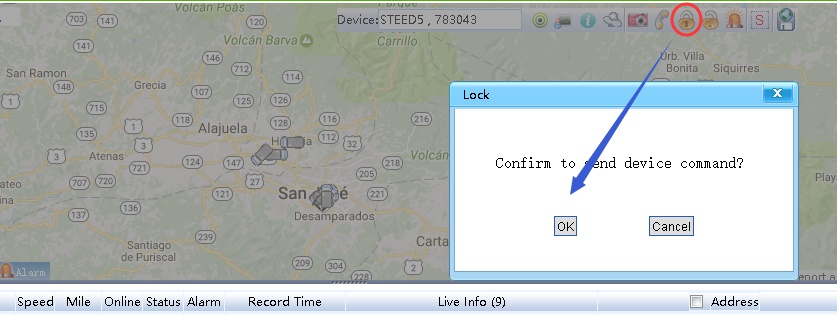

7. Control Engine:
User can cut off engine via platform or sending message to the
device. Car will be shout down and
Theft can not drive car away.
(For safety considering , it will not cut engine while speed is
above 20km/h.
8. Built-in Antenna:
Built-in high tech of GPS/GSM Antenna for easy installation.
Power Code Wiring:
The standard voltage is 9.5V-100VDC.
Please use the power line which provided by the manufacturer.
The red line is the positive. The black line is the negative.
The negative should earth alone or link iron during installing.
Do not connect it to other ground wire. And please make sure the
device is powered on status.
(Power switch on down position)
Red Led light will flashing while device installed correctly, GSM
blue led light and GPS Green led light will flashing around 1
minutes later after getting signal.
Application:
1. Fleet management system
2. Motorcycle and vehicle
3. Rental Car Company
4. Taxi Company
5. Insurance company
Steps of installation:
1. Open the back cover,insert a SIM card to SIM Card Slot.
2. Switch power button up(Power on).
3. Connect the power cable with the interface of device. Now theree
LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED
lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover.
5. Please ask professional technical to connect wires and install
to the vehicle. After correct installation.
the REd LED will falshing, 1 min. Later the Blue Led will falshing
too. That shows installing completely.
Picture:
