2G GSM GPS Tracker Device With High Sensitivity GPS And GSM Module

1. Start Up

A. The indicator in the device can turn into red and blue color.

B. Insert the SIM card and install the tracker in the car, the red indicator is on. In 10 seconds,

C. the device will begin to work and search the GSM/CDMA signals as well as the GPS signals. D. When the device is communicating, the red indicator blinks very fast.

E. The blue indicator will keep flashing every 2 seconds when the GPS module is in standby mode.

F. When the blue indicator is not lighting, the GPS module is working but hasn’t fixed position,

after it has fixed position, the blue indicator is lighting.

2. Main Functions

A. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times,and get the working status. You can choose the Positioning Platform by yourself.

B. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers.

C. Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime.

D. Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter.

E. Auto Track: You can set up auto track by SMS or on-line positioning platform.

F. Mileage statistics: ACC checking; cutting off power and alarm.

3. Alert Function:

A. Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.

B. Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.

C. Power Off Alert: When the power is cut off, there will be alert voice on the platform.

4. Specification

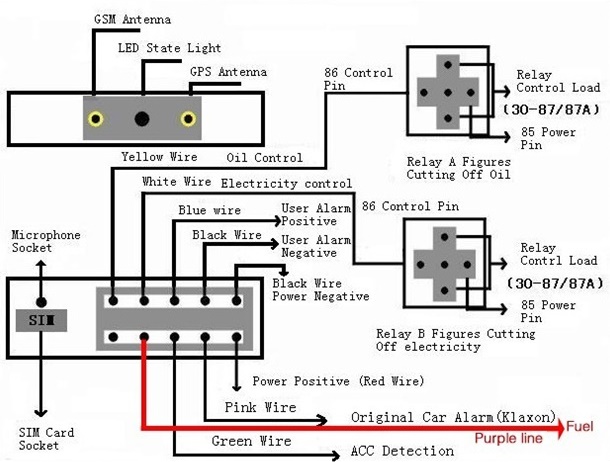

5. Installation

6. Platform Track

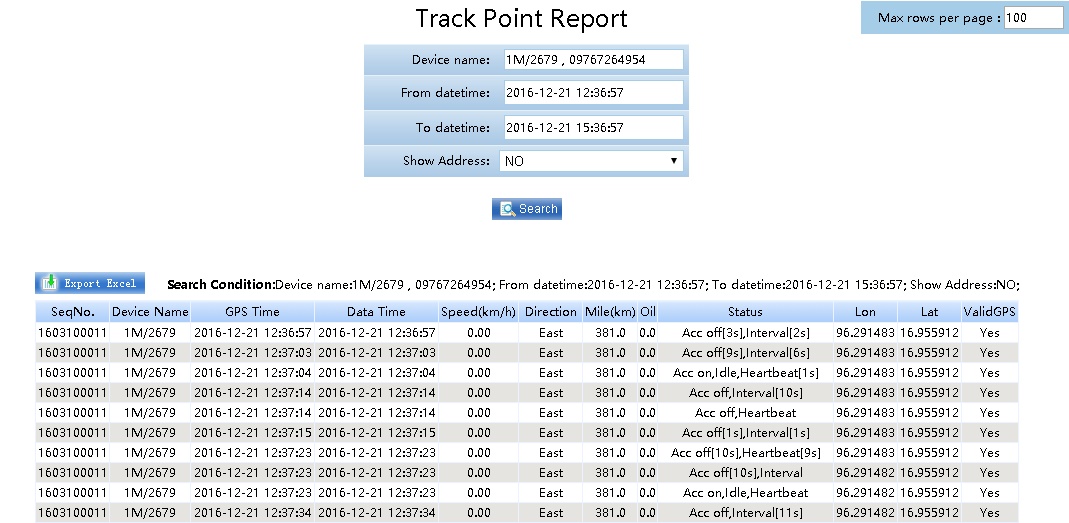

7. Track Point Report
