GPS Tracker Device Support 3G WCDMA Network And Remote Cut Off
Engine
Performance Parameters:
Content | Specs. |
Dim. | 87 * 57 * 25 (mm) |
Weight | 0.459kg |
Network | WCDMA |
Function | Remote Cut Off Engine |
GPS chip | SiRF III chip |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V－30V |
Battery | Chargeable changeable 3.7V / 1.2Ah Li-ion battery |
Standby work current | < 30mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Description:
1. Positioning and Tracking: Through the on-line Positioning Platform
or the cell phone to locates at times, and get the working status.
You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is a emergency happened on
the vehicle, you can put on the button and the installed device
will send out alarm to the authorized numbers.
3. Remote controlling oil and circuit: you can control the oil and
circuit via the device by SMS in anywhere and anytime.
4. Remote Monitoring: In anywhere and anytime, call the phone number
in the device, when it connects, you can monitor the sound around 5
meter.
5. Movement Alert: Send SMS to the device to start the movement
alert function. When the vehicle is moving, the device will send
the movement alert to all authorized numbers.
6. Overspeed Alert: Send SMS to the device to start the movement
alert function. When the vehicle is overspeed, the device will send
the overspeed alert to all authorized numbers.
7. Geo-fence: Set up a geo-fence for the device to restrict its
movements within a district. The device will send the message to
all authorized numbers when it breaches the district.
8. Restart the device: send SMS to resume the default of device.
9. Auto Track: You can set up auto track by SMS or on-line
positioning platform.
10. Mileage statistics; ACC checking; cutting off power and alarm.
11. Compatible with the original anti-theft alarm: It will send SMS
alarm after the original anti-theft alarm warning.
12. Modify the IP and Port of Communication Protocol for different
on-line positioning platform

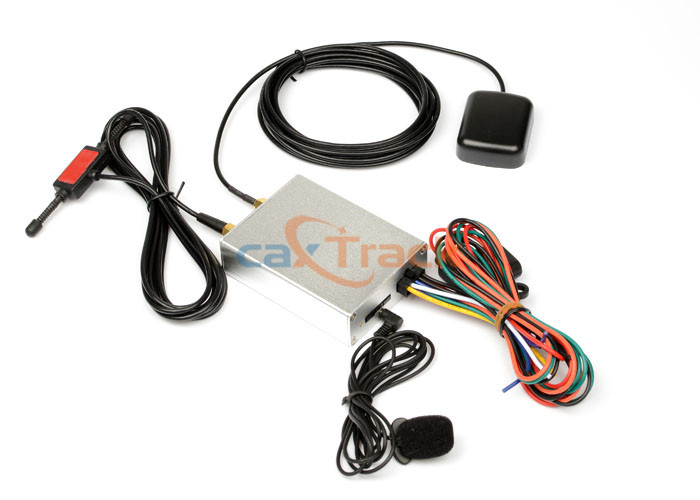

Outlook:
Applications:
4s shop, car company, truck company, motorcycle company,GPS
producer, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, car repair shop,taxi company, bus
company.
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) GPS Tracker 1 pcs
2) Power Cable 1 pcs
3) GSM antenna 1 pcs
4) GPS antenna 1 pcs
5) Installation cables 1 set
6) Usage instructions
7) Warranty card
8) Certification
2. optional configurations
1) Accessories (relay) for cut fuel/circuit
2) High capacity backup battery, it can works for 12h
3) Temperature sensor and fuel sensor
