Hot Sell In UAE Multi-Functional Vehicle GPS Tracker with OBD2
Connector
This is most advanced and high-cost effective GPS tracker, it is
equipped with ARM9 high speedy microprocessor; Supporting camera
(location&driving information log on picture); Bidirectional
communication; Support max 64GB SD card for storing data and
pictures; 4 A/D connectors for multi fuel sensor monitoring;
Support unique active RFID for automatic anti-theft and driver
identification; Support OTA(upgrade over the air) for upgrading new
firmware by GPRS if needed; With harsh braking&acceleration
alarm and accident alarm; And many useful functions and
extensibility for fleet management and vehicle security purposes.
Features:
1. Ruqest for OBD data by SMS
2. Mileage setting
3. Fuel tank volume setting
4. Notification of vehicle fault
5. Vehicle maintenance notification
6. Tracking via SMS or GPRS (TCP/UDP)
7. Geo-fencing control and alarm
8. Speeding alert
9. Get detail address or Google map link via SMS
10. Low battery alert
11. SOS panic button
12. Voice monitoring
13. Arm/disarm
14. ACC on alert
15. GPS blind spot alert
16. LBS tracking
17. Movement alert
1. Plug & play design with OBD-II connector, compatible with all
the vehicles with OBD-II connector, supports all the CAN-BUS
communication protocols;
2. It is the integration of GPS tracker + RFID car alarm +
Bluetooth diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street
name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed,
direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm. Once the device is disconnected, it will
trigger the alarm;
9. Built-in shock sensor for power saving & triggering vibration
alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID
function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer & speed reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Read the vehicle error code & clear the error code ;
16. Built-in rechargeable backup battery; when the car battery is
cut off or damaged, the built-in backup battery can work for
emergency check, and the system will send out power failure alert
immediately.
17. Two kinds of location information; user can check the GPS
latitude, longitude, speed, direction. If there is no GPS signal,
user could also locate the car by GSM base station code.
18. Remote diagnostics function. Transmission of the following data
via blue-tooth or GPRS network:
Technical Parameters:
1. GSM: 850/900/1800/1900 Quad band.
2. GPRS: Class12. TCP/IP
3. Working Voltage: DC12V
4. Working Current: about 22mA( DC12V)
5. GPS Locating Time: Cold start about 38s,Warm start about 32s,
Hot start about 2s
6. GPS Precision: 10m
7. Working temperature: -20 degree to +70 degree
8. Working humidity: 20%-80%RH
9. Measurement: 67mm*45mm*25mm

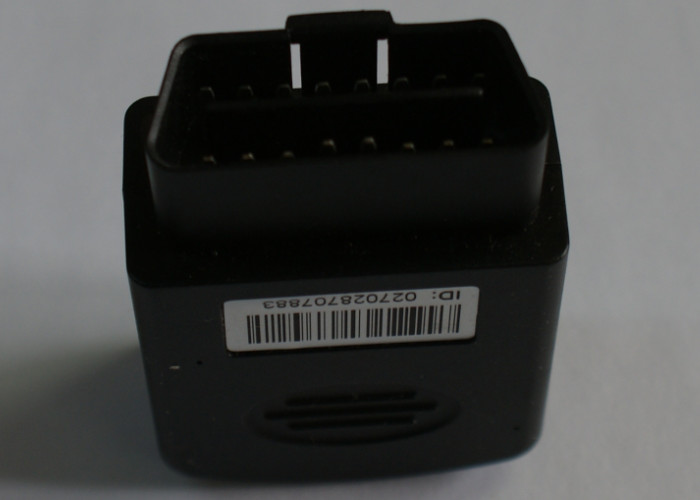

Picture:
Command:
No | Features | Message sent | Sample |
1 | Center Add | 710#number#
711#number# | 710#13500135000#
711#13800138000# |
2 | Center Del | D01#
D02# | D01#
D02# |
Command
Description | 1. Only one nubmer can be center number
2. change center number must resend the command
3. add new center number by center,A, and delete by center,D |
Command Feedback | Successful Setting: Add admin account 1 OK! |
| Text command | Parameter | Sample |
| View | 901# | 901# |
| Command Description | This directive is used to view Device Manager number.
|
| Command Feedback | Successful Setting:Admin1: Admin2: |
| Authorized number set |
| Text command | Parameter | Sample |
| Authorized Add | 101#number#
102#number#
103#number#
| 1:101#13800138000#
2:102#12345678912#
3:103#12345678912#
|
| Authorized Del | D11#
D12#
D13# | D11#
D12#
D13# |
| Command Description | 1) Authorization number for SMS control oil.
2) only three numbers to set the authorization number
3) change the authorization number needs to delete the previous
number
|
| Command Feedback | Successful Setting:Add Authorization account 1 OK! |
| 4)View authorized number |
| Text command | Parameter | Sample |
| View authorized | C10# | C10# |
| Command Description | This directive is used to view the equipment authorization number |
| Command Feedback | Successful Setting:
Authorization 1:
Authorization 2: Authorization 3: |
| 5)APN |
| Text command | Parameter | Sample |
| APN Setting | 802#APN#username#password# | 1: 802#intenet#123#123#
|
| Command Description | APN differs according to the local telecom operators.
For example:APN request password,please refer to Sample1,and
Sample2 for no password. |
| Command Feedback | Successful Setting:SET APN OK! |
Applications :
4S shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- GPS Tracker Device
- User manual
