SW-0001A 4ch Dual SD Card Mobile 3g h.264 HD 720p Vehicle Mobile
DVR
Product Description
| Function | Performance |
| System | Language | Chinese / English |
| Operation Interface | Graphical menu operation interface(OSD menu) |
| Video | Video input | 4 channels |
| Video output | 1 channel |
| Video display | Single picture, 4 pictures |
| Signal system | PAL / NTSC |
| Image compression | H.264 Main profile, 100 frame D1/sec,720P |
| Audio | Audio input | 4 channels |
| Audio output | 1 channel |
| Record format | Synchronized video & audio recording |
Recording & Storage | Image resolution | CIF/D1/720P |
| Video coding | ISO14496-10 |
| Video bit rate | CIF: 128Kbps~1536Kbps , D1: 256Kbps ~2048Kbps , 720P: 512Kbps ~ 5120Kbps |
|
| Audio bit rate | 8KB/s |
| Storage | Support 1-2 SD card storage, support Max 256GB SDHC card |
| Alarm | Alarm input | 10 channels, alarm activated by low voltage (1-2channels(Built-in Optional) 3-10channels(Optional) |
| Alarm output | 1 channel, 12V output |
Communication Interface | RS232 interface | RS232 interface X 1(Optional) |
| RS485 interface | RS485 interface X1 (Optional) |
| RJ45 network interface | RJ45 network interface X 1(Optional) |
| VGA | VGA X 1(Optional) |
Wireless communication | 3G | Built-in 3G(WCDMA/EVDO) optional module |
| 4G | Built-in 4G (FDD/TDD-LTE,WCDMA,TD-SCDMA,
GSM,EVDO,CDMA) optional module to match local cellular carrier |
| WiFi | Built-in Wi-Fi 802.11 b/g/n (2.4Ghz) (Optional module) |
| GPS | Built-in GPS module. Real-time geographic coordinates, speed
information(Optional module) |
Supporting Software | PC playback | Video files playback in PC with analysis of the vehicle status |
Software
Upgrade | Upgrade through SD card |
| Size | 141*150*41mm |
| Package | 36PCS/CTN |
| Accessories | RCU*1pcs,Power Cable*1pcs,Key*1Set |
| Gift box size | 275*180*60mm |
| CTN Size | 490mm*485*620mm |
| G.W(Gift box) | 1.05KGS
|
What is an HD car video recorder: definition can be split into HD
and car video recorders; HD refers to the resolution of the output
video, car video recorders are also known as car cameras; car DVR;
English abbreviation is MDVR, car video recorder is a car video
surveillance system An important part of the core, it can be said
that vehicle video surveillance is a video surveillance link
composed of high-definition onboard cameras. SD card MDVR uses SD
card as storage medium. Generally, four channels of output video
are used, and a single card can support 128G. There are also analog
car video recorders corresponding to high-definition on-vehicle
video recorders, and analog and substandard definition analog car
video recorders. High-definition analog, 720P car video recorder
that we talk about the million HD car video recorder.
SD Card MDVR Features
4-channel video on-vehicle monitoring input can be connected with
analog camera and AHD camera, 1 way multi-screen output, can be
connected to the car display screen host playback review. II: The
video formats are CIF, D1, 720P, and 960P. III: MDVR pickup pickup
machine has voice input function. IV;Provide professional security
video player, easy to operate. V; can search video files by time
according to the recording direction. VI; There is a time and date
recorder in the recording screen that can be viewed on the screen
of the monitoring screen. VII; Wide voltage design 8~36V. VIII;
video mode can be set to start the boot, boot at a specific time,
alarm boot. IX; SD card software upgrades. X; All aluminum alloy
shell design, good heat

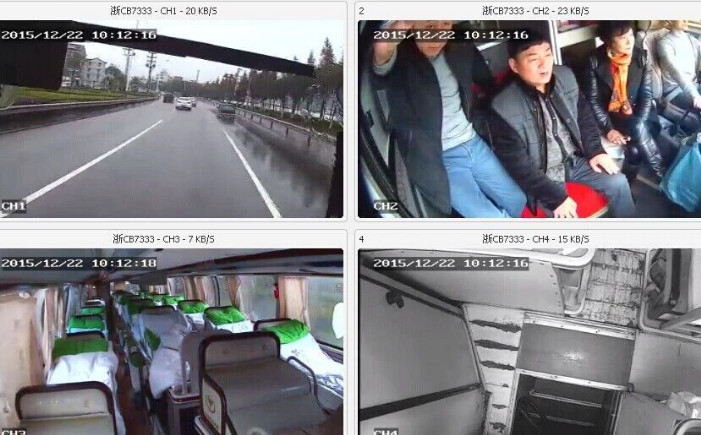

Video Online Checking:
MDVR Factory:
Installation Picture:
MDVR Certificate:
MDVR FAQ:
Question 1: How can we buy your mobile DVR product?
Answer 1 : You can pay it via T/T, paypal,western union,After we
receive your payment, we will send
goods to you as soon as possible.
Question 2: Can we use our own server?
Answer 2: Yes,we can provide platform software to you. you only
need to buy one server.
Question 3: Can we use 128G SD Card?
Answer 3: Yes, of course.
Question 4: Can we use 1080P camera?
Answer 4: Yes, but first you also need to buy 1080P SD card mobile
product.
