Capacitive Fuel Sensor High Accuracy Length Can Cut Monitor Fuel
Liquid Level.
CLS2-700 Capacitor motor oil level sensor combined capacitor sensor and
liquid level sensor.The product not only contain the features of
high precision measurement and maintenance-free, at the same time
it doesn't influenced by temperature and medium.It can be
automatically measuring error caused by different temperature or
medium for precise compensation,achieving the purpose of accurate
measurement.
The entire sensor machine doesn't contain any elasticity or moving
parts.Impact resistance, maintenance-free, long service life, easy
installation,can be installed in various occasions.Accurate measure
for gasoline, diesel oil, hydraulic oil level and other various
weak corrosive liquid level
Definition of the output line:
Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2-700A]:
Black line connect ground wire
Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire
Yellow line empty fuel tank use only
Green line full fuel tank use only
4~20 mA output [CLS2-700B]:
Black line connect ground wire
Red line connect positive power
White line 4~20mA ampere signal out put,connect ampere signal line
Yellow line empty fuel tank use only
Green line full fuel tank use only
RS232 output [CLS2-700C]:
Black line connect ground wire
Red line connect positive power
White line RXD input, connect car RS232 TXD
Blue line TXD output, connect car RS232 RXD
Yellow line empty fuel tank use only
Green line full fuel tank use only
RS485output mode(CLS2-700D)
Black line connect to CND
red line connect to VDD
white line connect to RS485 A
blue line connect to RS485 B
yellow line marking for empty fuel tank
green line marking for full fuel tank
Application:
Fuel monitoring, Riquid level monitor.
Installation Notes
Before installation, please check the attachment: Flange, rubber
blanket,O-rings, and Whether the screw is consistent and complete
Trape the o-rings to the root of the sensor ( packed prior to
shipment )
Daub the Oil-resistant sealant on the two side of the rubber pad,
and aim flange plate to the tank flange hole,then fixed by
screw,symmetrical tighten the strength in turn to make sure uniform
stress and avoid oil spilling.
To finish the installation ,insert the sensor and use a wrench to
tight.
connect the power cord, communication line, cable, ground wire
according to the definition, and yellow line and green line need to
trape one by one , preventing from the short circuit
Link the power of the sensor after checking the circuit
Installation position should be placed as near as possible to the
center of the fuel tank, in order to reduce the influence of the
oil level of tilt and the oil level of volatility while on the
hill.

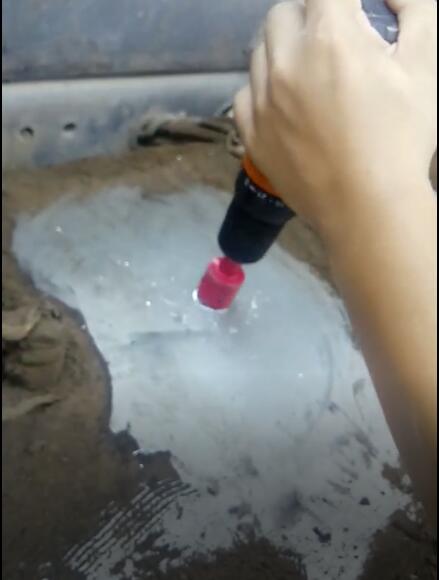

Installation steps
