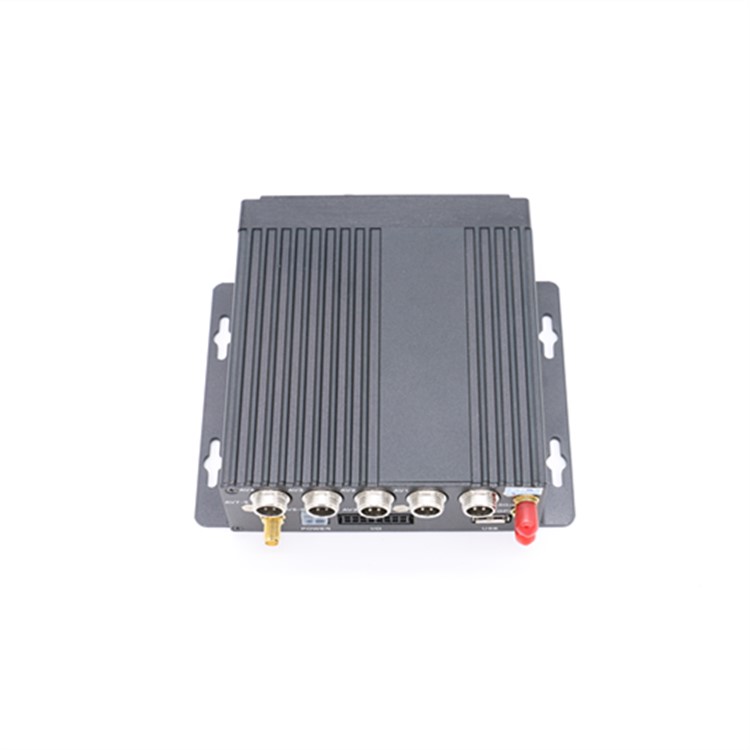

Car GPS Mobile DVR With 2CH SD Card Slot And 4CH Camera 1CH AVout

GPS Mobile DVR Main Feature:

1. Recording video and support 4CH cameras

2. Real Time tracking routes and history track with GPS and 3G module.

3. Network: 3G or 4G, WIFI, RJ45,GPS

4. 1CH AVout for monitor

5. Alarm: 8CH input and 2CH level output

Specification:

1. Operation System: Linux

2. Language: Chinese/English or others (Can be customized according to requirements)

3. Video compression: H.264 compression mode

4. Graphical User Interface: Can be connected to one external LED screen

5. Video input: 4CH 720P AHD OR 4CH standard definition or 2CH high definition 2CH standard defintion

mixed video input.

6. Video Output: 1CH Video output

7. Video resolution: 720P/D1/HD1/CIF ( Max. 4CH 720P)

8. Video Quality: 0 to 7 levels, 0 is the highest level and 7 is the lowest level.

9. Audio compression: G.726 compression and 8KB/s speed.

10. G-sensor function.

11. Voltage input DC 8V to 33V

Car GPS Mobile DVR:

LED Indicator:

1. PWR: power indicator LED, LED on means power line has connected.

2. ARM: Alarm indicator LED, on means alarm evet is happening.

3. REC: Video recording indicator LED, on means device is recording.

4. SD1: SD card 1 indicator LED, LED on stands for SD Card exists but not recording.

LED flash stands for SD Card 1 is recording.

LED Off stands for SD Card 1 not exist.

5. SD2: SD card 2 indicator LED, LED on stands for SD Card exists but not recording.

LED flash stands for SD Card 2 is recording.

LED Off stands for SD Card 2 not exist.

6. Lock: SD Lock indicator LED, LED on stands for SD Lock is open.

7. IR Remote receiver: Infrared remote control receiving hole.

SD Lock: It is used for unload SD Card and SIM Card.

1. AV1 to AV4 : 1 to 4CH camera video input with 12V output

2. AV Out: Video and Audio output interface with 12V output

3. 3G: 3G or 4G antenna

4. GPS: GPS Antenna

5. USB: It is used to import or export data or upgrade.

6. I/O : It supports alarm input and output, serial port and so on.

7. Power: Power cable, red line is power positive,black is power negative and yellow is ignition signal cable.

System Interface:

Platform interface:

Factory:

Certificate:

FAQ:

1. How many SD Card slots it support?

one or two slots.

2. Does it support 4G network?

Yes, it supports 4G or 3G network accroding to your customer's requirements.
