Mobile 4CH H. 264 Vehicle DVR G Sensor Truck Bus Security DVR Full
Real Time
Performance Parameters:
Item | Parameter |
| |
| |
| |
Audio | Audio Input | 4CH Aviation Plug Input |
| Audio Output | 2CH,headphone connect at front panel, BNC Connect on Back panel |
| Compression | G.726 compression, 8KB/s speed |
Alarm Input | 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
Interface | 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
|
2CH 485 Interface,Connect PTZ Camera |
2CH CAN interface |
Wireless Transmission | Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE； Built in 4G module optional, TDD-LTE, FDD-LTE |
GPS Position | Support Built GPS/BD Module |
| HDD | Max 2.5” 2TB HDD |
Storage | SD Card | Max 128GB SD Card Mirror Recording Keep Data Safety |
| Update | Support USB Updating, SD Card Updating,OTA Remote Updating |
| File Format | H.264 |
| File System | Special FAT32 File System |
| | |
Security | User/Admin 2 Level Different Password |
Optional Functions | Voice Call | Support voice call each other |
Serial Expand | Support LED Advertisement Panel,Oil Sensor,POS,Bus Station
Broadcaster,Car OBD,ect.external device |
Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off |
Input Voltage | DC:+6V - +36V |
Output Voltage | +12V@1.5A,+5V@1.5A |
Power | Working ＜5W |
Temperature | -20℃ - +70℃ |
| | |
| VIDEO | VIDEO INPUT | 4 channel |
| VIDEO COMPERSSION | H. 264 High Profile |
| RECORD RESOLUTION | 1920X1280 |
| RECORD FRAME RATE | 120 FPS for 4 channels |
| VIDEO BITRATE | 0.5Mbps ~ 4Mbps |
| | |
| AUDIO | AUDIO INPUT | 4 channels |
| AUDIO COPPRESSION | AAC |
| | |
| DATA | STORAGE | SD card, external USB device (memory stick or hard drive) |
| FILE FORMAT | AVI |
| | |
| INTERFACE | SENSORS | 1 speed sensor, 1 ignition sensor, 3 sensors for brake, return etc. |
| COM PORT | 1 RS232 port, 1 RS485 port |
| NETWORK | 3G /4G (Optional) |
| WiFi | 802.11/b/g/n (300Mbps) |
| GPS | Support GPS receiver(Optional), can record GPS information along with video and audio. GPS data
format: NEMA0183, Baudrate: 4800BPS |
| | |
| SOFTWARE | PLAYER | Specially designed player for the DVR |
| | |
| POWER | POWER INPUT | From +8VDC to +32VDC |
| POWER OUTPUT | DC, +12V@2A, +5V@1A |
| POWER COMSUMPTION | Working power: <2W, Strand by power: 0.1W (exclude camera, hard
drive, monitor) |
| | |
| OTHER | WORKING TEMPRETURE | From -10C ~ +60C |
| SIZE | 115mm X 92mm X 20mm |
Functional Features:
- HIS Solution,H.264 Compression, Multiple stream recording, support
4CH 720P AHD input/ 4CH analog standard difinition Camera input/2CH
HD + 2CH SD mixed input;
- High quality real time recording, 720P/CIF/HD1/D1 Optional, quality
adjustable;
- Professional Car Power Design,8-36V wide voltage,Provide reverse
voltage/overload/short circuit protection, to meet kinds of car
application;
- Support 12VDC/3Amp output voltage,power supply for Camera/Screen
etc;
- Max 2TB HDD + 128GB SD Card Mirror Recording,protect DVR from shock
& Dust damage;
- Watchdog abnormal restart function,protect SD Card and Record;
- Exclusive pre-allocate DVR Special File System Technology,Solving
repeatedly wipe cause file fragmentation, and ensure the integrity
of the data.
- ACC Delay off,can set 24 hours;
- Unique UPS Technology ensures the integrality of record when power
failure occurs,even can for 10-15s.
- Car Mobile DVR Auto Record/Manual Record/Alarm Record etc working
mode to meet different requirements;
- Car Mobile DVR Show Car status/Plate/Driving Route/Low Speed/Over
Speed information for convenient management;
- Car Mobile DVR Support GPS/BD,3G/4G Module Optional,WIFI extend;
- Car Mobile DVR Strong Network,device configure via IE Web,Support
SMS Get device information and configure;
- Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc
through remote control platform;
- 8CH Alarm input(Door Open,Light,Turn direction,brake,reverse
etc),can linkage kinds of alarm;
- 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut
off;
- High level aviation interface,easily installation and better
shockproof, more stable;
- Support Local Auto-photo when alarm input.
- Easily Smart GUI Interface, saving time in device setting;
- Strong Stable Application,Support 3G/4G Realtime monitor,
talkback,playback,record,picture snap etc;
- Updated through SD or OTA Remote Automatic updating,more stable and
convenient;
- Support Phone Remote Monitor,3G Phone Calling etc;
- Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
- Support Ministry of Transport Standard Agreement
- Be Customized according your request;
Product Description
HD 1080P 4 Channel Car Mobile DVR with GPS Tracking WiFi 3G 4G, for
vehicles cars buses trucks vans boats monitoring system
This system can be for all kinds of vehicles such as Taxi, bus,
coach bus, public bus, minibus, ambulance, TAXI, official vehicles,
police cars, trucks, semi-trailers, engineering vehicles, school
buses, pickup trucks, cement trucks, excavators, concrete mixers,
private cars, road cleaning vehicles, sprinkler, patrol cars,
sanitation trucks, garbage trucks, Armored vehicles, trains,
subway, dump trucks, agricultural harvesting vehicles, military
vehicles, ships, yachts, etc.
Detail Pictures:
1. High video quality based on the H. 264 High Profile.
2.1080P High Definition resolution recording. The resolution for
each channel is 1920X1080 full realtime.
3. Support WiFi(AP & Client) with 802.11/b/g/n (300Mbps)
4. Compact size, much easier for installation.
5. Support from 8VDC to 32VDC, applicable for 12VDC and 24DC
vehicles.
6. The recorder provides each camera with stable +12V DC power; DVR
can detect the short cut on power circuit.
7. Can use ignition to control the power. Configurable power timer
after ignition is off.
8. Support automatic record, event trigger record, schedule record.
9. Can record speed with audio and video. Support over-speed alarm.
10. Support 3 sensors, can record brake, return, right turn, left
turn light status into the record file.
11. Use AVI format for record file. Compatible with different
player software.
12. Support FAT32 file system, record file can be read directly on
Windows, Linux.
13. Support 3G/4G network (optional)
14. Support GPS tracking (optional)
Applications:
- Vehicle,Truck,Bus,School Bus,etc.
- Real-time video monitoring.
- GPS tracking.
- Assets Tracking.
- Fleet Management.
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.

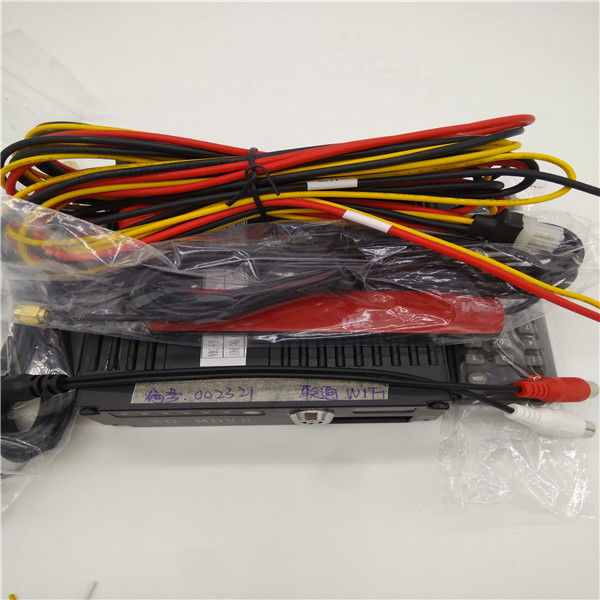

Product Configuration:
1. Standard configuration
- Device host 1pcs;
- Power Cables 1pcs;
- I/O Cables 1pcs;
- AV Cables 1pcs;
- Remote control 1pcs;
- 3G/4G Antenna 1pcs;
- GPS Antenna 1pcs;
- CD( User manual) 1pcs;
2. Optional configuration:
- camera
- lcd display
- SD card
- hard disc
- fuel sensor
- temperature sensor etc..
