GSM GPRS Car Tracking Device Wireless Positioning System With Acceleration Sensor

Car GPS Tracker Positioning System Feature:

1. Built in High Sensitivety MTK GPS Chipset

2. Quad band GSM Frequency For all over the world use

3. Built in Rechargeable Li-ion Battery (optional)

4. Support DC12V and 24V Relay (optional)

5. SMS Or mobile phone track the device.

6. Real time tracking the position

7. Change server IP and port via SMS Command

8. Mileage statistics for GT06N protocol (optional)

9. Car GPS Tracker Supports GT06N and LK209 Protocol

10. Igniton status can detected by the green line.

Car GPS Tracker system specification:

1. GPS Tracker device Weight: 51g

2. Car GPS Tracker Size: 90mm*45mm*14mm

3. Tracker Device input voltage: DC9V to DC40V

4. GPRS : Class12, TCP/IP

5. Humidity: 20% to 80%

6. GPS Device Work Temperature: -30 degrees to 70 degrees

7. GPS Antenna: Ceramic Antenna

8. TTFF(Open Sky) Warm Start: less than 32seconds

9. GPS Position Accuracy: less than five meters.

Platform track website :

Mobile phone Real time Tracking:

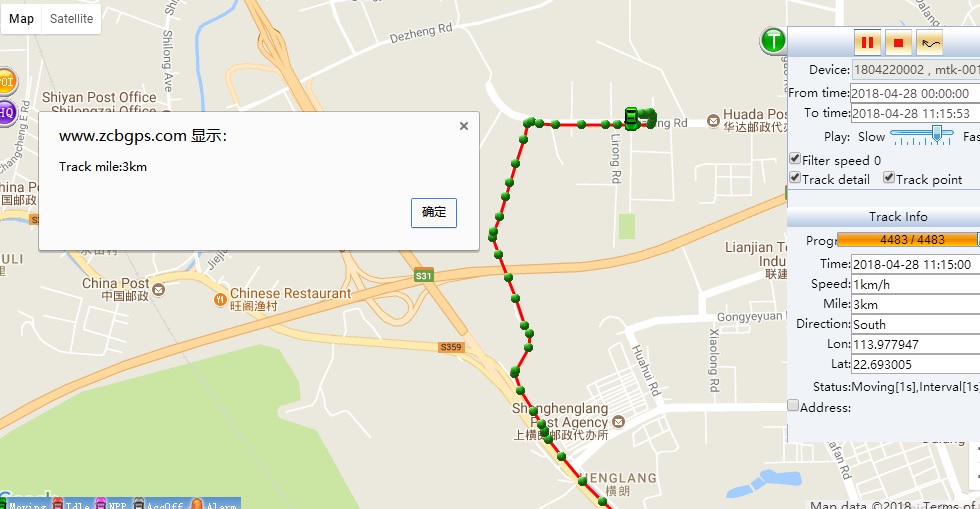

Track the history routes:

How to work for car GPS Tracker system?

GPS Tracker Device Box:

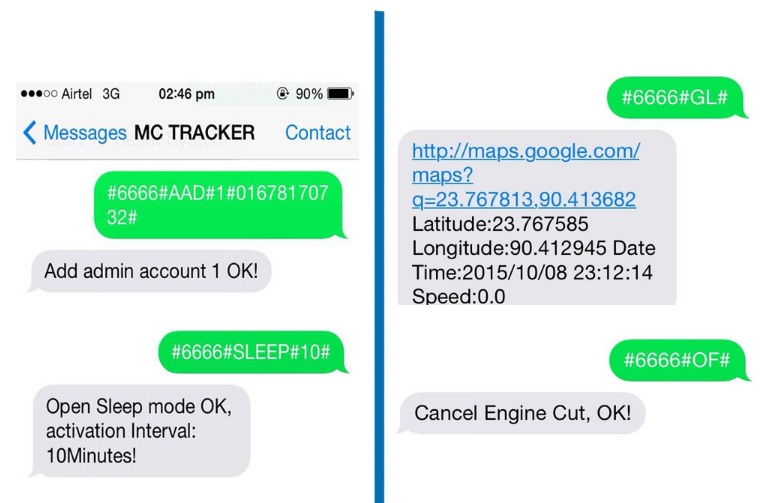

SMS Commands of GPS Tracker device:

GPS Tracker Factory:

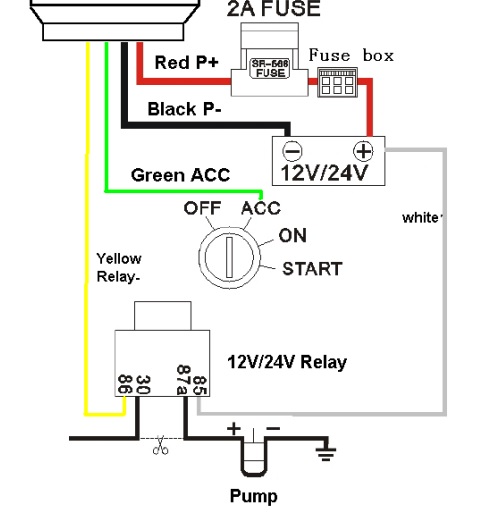

GPS Tracker device installation diagram:

GPS Tracker device power cable instructions:

Red Line and Black Line are for power supply and the Fuse is 2A

Yellow line connects to relay and control engine on or off by SMS command.

Green Line is ignition detection line
