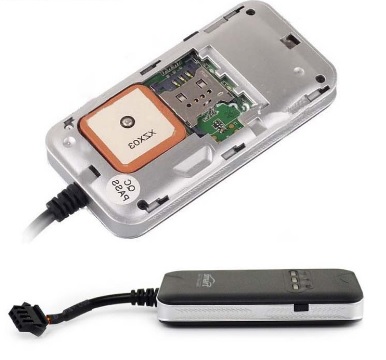

Wide Input Voltage GPS Tracking Device With Ceramic GPS Antenna

Overview:

This GPS Tracker Device is one Mini Size with Built in Ceramic GPS Antenna and plastic shell.

It also supports remote shut off engine function, and if you need power off alarm function, before ordering

please tell me, i will add built in battery. because this is optional function, the default accessories has no

battery.

Basic Accessories:

1. Mini GPS Tracker Device

2. Power Cable with four lines

3. one Sticker

4. Manual

Optional Accessories:

1. Relay DC12V or 24V

2. 180mAh built in battery

Specification:

1. Type: GPS Tracker Device

2. Model name: CA-V2A

3. Place of original: Shenzhen China

4. Weight: 41g

5. Working Currency: 20mA @12V

6. Network: 2G GSM 850/900/1800/1900Mhz

7. Wide input voltage: DC9V to 40V

8. GPS Location accuracy: 10 meters

LED Indicatior:

Remarks: For more security reason after installation, when SIM Card had been already insert,

The device will be auto shut off all three indicating lights in about one minute. Please switch on the

White rubber button on the right side to power on the three indicating lights. More specified details as

below, switch off again the same button, all lights will be turned off. and the lights will keep repeating

on or off by switching the same button on or off again.

Functions:

1. GPS Positioning:

2. Playback routes:

3. ACC Igintion Detection and speed

4. Vibration alarm and power off alarm

5. Shut off engine

Device wire diagram:

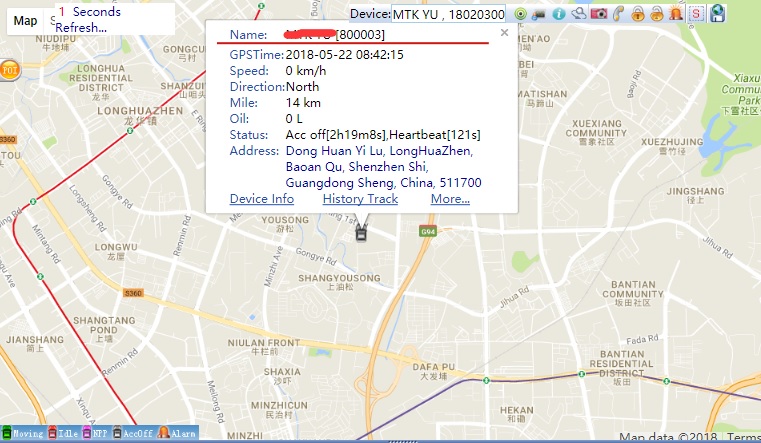

Tracking Tools : computer mobile phone Ipad and so on.

GPS Tracker Device Application:

Certificate:
