Plug and Play Obd II 3G GPS Vehicle Ttracker 3G Tracking Device
Features:
| Items | Specifications |
| Dimension | 72*48*24 mm |
| Weight | 100g |
| Input Voltage | DC 12V/1A |
| Back-up Battery | 150mAh/3.7V |
| Power Consumption | 100mA |
| Operating Temperature | -20 ° C~55 ° C |
| Humidity | 5%~95% |
| Work Time | 15 hours in power-saving mode and 3 hours in normal mode |
| LED | 2 LED lights to show GPS/GSMstatus |
| Microphone/Speaker | Internal microphone and speaker |
| Sensor | Tremble sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star IV chipset |
| GPS Sensitivity | -163dB |
| Positioning Accuracy | 10 meters
|
1. Ruqest for OBD data by SMS
2. Mileage setting
3. Fuel tank volume setting
4. Notification of vehicle fault
5. Vehicle maintenance notification
6. Tracking via SMS or GPRS (TCP/UDP)
7. Geo-fencing control and alarm
8. Speeding alert
9. Get detail address or Google map link via SMS
10. Low battery alert
11. SOS panic button
12. Voice monitoring
13. Arm/disarm
14. ACC on alert
15. GPS blind spot alert
16. LBS tracking
17. Movement alert
1. Plug & play design with OBD-II connector, compatible with all
the vehicles with OBD-II connector, supports all the CAN-BUS
communication protocols;
2. It is the integration of GPS tracker + RFID car alarm +
Bluetooth diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street
name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed,
direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm. Once the device is disconnected, it will
trigger the alarm;
9. Built-in shock sensor for power saving & triggering vibration
alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID
function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer & speed reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Read the vehicle error code & clear the error code ;
16. Built-in rechargeable backup battery; when the car battery is
cut off or damaged, the built-in backup battery can work for
emergency check, and the system will send out power failure alert
immediately.
17. Two kinds of location information; user can check the GPS
latitude, longitude, speed, direction. If there is no GPS signal,
user could also locate the car by GSM base station code.
18. Remote diagnostics function. Transmission of the following data
via blue-tooth or GPRS network:
Technical Parameters:
1. GSM: 850/900/1800/1900 Quad band.
2. GPRS: Class12. TCP/IP
3. Working Voltage: DC12V
4. Working Current: about 22mA( DC12V)
5. GPS Locating Time: Cold start about 38s,Warm start about 32s,
Hot start about 2s
6. GPS Precision: 10m
7. Working temperature: -20 degree to +70 degree
8. Working humidity: 20%-80%RH
9. Measurement: 67mm*45mm*25mm

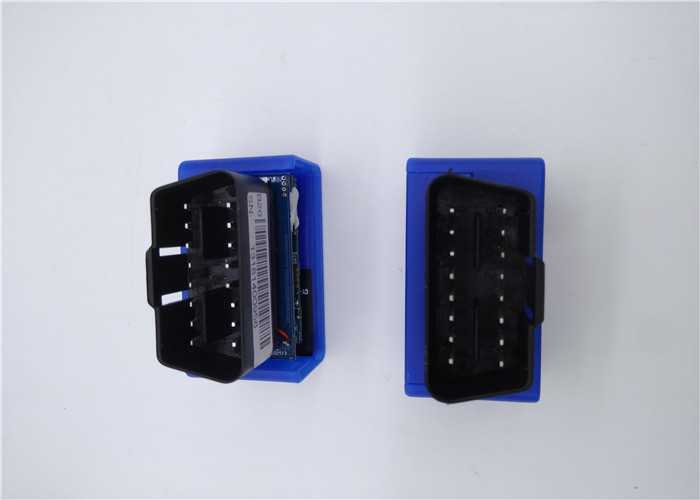

Picture:
Power cut off alarm:
When GPS device be remove from vehicle, or power with be cut off,
it will send alarm to user by SMS and system.
Over speed alarm:
Real time remote monitor driver behavior, send alarm information to
manager when vehicle over speed.
Back up battery:
If GPS device be removed, it will can send alarm by back up battery
and keep tracking location for about 4hours.
Geo fence alarm / drive area limit alarm:
Set up a Geo -fence for the GPS to monitor it`s movement area, the
GPS will alarm when vehicle out of this area.
Audio monitoring:
You can call the GPS device and listen the vehicle inside voice
when driver unknow. The GPS device not vibrate or ring
Mileage statistics:
Calculate vehicle driving mileage in a period of time.
Applications :
4S shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- GPS Tracker Device
- User manual
Fleet management:
You can manage all vehicles on the website tracking software at
same time.
History daily report:
Check the vehicle work information in whole day, the location in
anytime, the speed, time, ACC condition, stop time, stop place etc.
Vehicle stop report:
Check vehicle stop how long time and stop place.
Android app:
You can real time tracking vehicle on our android app, one account
can check all of your vehicles.
