100mAH 3.7V Car 3G OBD GPS Tracking System With Diagnostic Function
Quick Details
Type: Gps Tracker
Use: Automotive
Screen Size: no screen
Function: car gps tracker, Real time tracking, car engine code reading,
driving behavoir analysis
Place of Origin: Guangdong, China (Mainland)
Brand Name: NYITECH
Model Number: NT-183WE
Warranty: 1 Years
Product name: tracking device for car
Size: 62mm*50mm*25mm
Weight: 100g
supported vehicle: passenger, lorry, truck, van, fleet car
GSM Frequency: 850/900/1800/1900MHz
Working Voltage: 8-32VDC
Built in: 3 axis 50hz accelerator
Inner battery: 3.7V/100mAH
Positioning system: GPS,QZSS,GLONASS,COMPASS,G
Technical Parameters:
1. GSM: 850/900/1800/1900 Quad band.
2. GPRS: Class12. TCP/IP
3. Working Voltage: DC12V
4. Working Current: about 22mA( DC12V)
5. GPS Locating Time: Cold start about 38s,Warm start about 32s,
Hot start about 2s
6. GPS Precision: 10m
7. Working temperature: -20 degree to +70 degree
8. Working humidity: 20%-80%RH
9. Measurement: 67mm*45mm*25mm

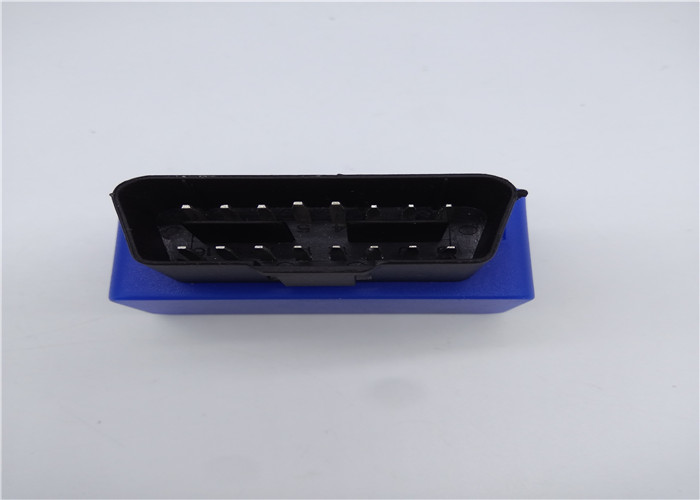

Picture:
Product Description
NT-183WE is an OBD GPS dongle which provide positioning, tracking ,
car status checking and driving behavior analyzing function. With
its plug and play design, the dongle can easily connect with OBD
port to acquire real time data , such as car position, car status,
car DTC, driving behavior data. And all these information will be
upload via GSM/GPRS to server for further analysis, statistics ,
storage and more extensive application
Technical Specification
| Mechanical Parameter | Dimension | 62mm(Length) x 50mm(Width) x 25mm(Height) |
| Weight | 100g |
| Interface | OBD interface: Support A/B Type Configuration interface :Micro-USB SOS Button interface:MMCX |
| Support Diagnostic Protocol | Passenger:ISO15031 and Dedicated protocol of Japanese
vehicleTOYOTA,NISSAN,MAZDA,HONDA,MITSUBISHI,SUBARU, SUZUKI,DAIHATSU) Commercial vehicle:J1939,J1708 and Dedicated protocol of
MITSUBISHI,HINO,ISUZU
|
| Power | Working Voltage | 8-32VDC |
| Working current | Max:<120mA 13.8DC,<80mA 27.6VDC Average( sleeping mode):<10mA 12/24VDC |
| Battery | 3.7V/100mAH |
| Positioning system | GPS,QZSS,GLONASS,COMPASS,Galileow,A-GPS( Optional ) |
| GPS Performance(GPS performance) | Receiver Channels:56 reacquisition Sensitivity:-160dBm position accuracy:2.5m CEP Cold Start:30s Hot Start:1s |
| GLONASS Performance(GLONASS performance) | Receiver Channels:56 reacquisition Sensitivity:-156dBm position accuracy:4.0m CEP Cold Start:32s Hot Start:1s |
| Actual Measurement 3D Positioning time | Cold Start:30s~120s Hot Start:3s~15s |
| Mode of data transmission | TCP/SMS |
| GSM/GPRS | Working frequency HSPA 900/2100mHZ; GSM.GPRS 850/900/1800/1900MHz |
| 3-axis accelerator | +/-16g |
| Storage | 8M BYTE FLASH |
| Indication light | 3G/GPS /OBD |
| Buzzer | System state/Alarm indication |
| Antenna | 3G | Built-in |
| GPS | Built-in |
| Accessories optional | USB private wire,SOS extended cable |
| Enviromental Parameter | Operating Temperature | -30℃ ~ +70℃(Humidity 80%) |
| Humidity | 5%~95%(No Frosting) |
Applications :
4S shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- GPS Tracker Device
- User manual
