Quality GPS Tracking System For Motorcycle Tracker With 2G GSM
Network
Feature List:
1. Real time tracking, after you finish installation, the device
works normal. GPS Tracker will upload real time position data to
server according to the time interval.
2. History Track: if you want to check the route in the past. you
can use this history track function. Our server stores the GPS
Position data for more than three month.

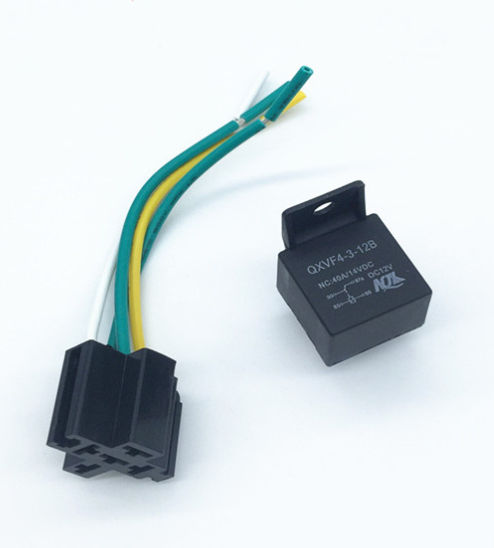

3. Remote control the engine on or off, first you have to connect
one relay to the vehicle. then control the relay on or off via
yellow line of the device.
4. ACC ignition detection, the green line can detect the status of
the vehicle. then display it on the platform.
5. This GPS device contains built in battery, if you cut off power
cable, there will be power off alarm, and device can works more
than 1 hour via this battery.
6. GPS Tracke also contains one Accelerometer sensor, when it is
static device will enter in sleep mode.
Specifications:
GPS Model: CA-V2C
Color: Black
Working Voltage: DC9V to 36V
GPS Channels: 20
Position Accuracy: Ten meters
GPRS: Class 12, TCP/IP
Network: 2G GSM GPRS
Weight : 32g
Size: 67*34*11.5mm
Installation on cars:
1. Open the back cover,insert a SIM card to SIM Card Slot.
2. Switch power button up(Power on).
3. Connect the power cable with the interface of device. Now theree
LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED
lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover.
5. Best place to install: Shelter in the decorated board below rear
windshield,make sure the receiving side is face up.
6. Shelter in the center console below the front windshield , on
the glove box, make sure the receiving side is face up, with no
metal object above.
GPS Device Picture:
