Dustproof Mini Size Long Battery Life GPS Tracker Product Sends One Data One Day

Product introduction:

CA-P3D is one long work time GPS Tracker with magnet. It is easy to install and no power cable.

GPS device supports five work modes to meet diffenet customers' requirements.

The battery is 3000mAh rechargeable Li-ion battery, it can be recharged for more than 10000 times.

P3D Specification:

GSM: 850/900/1800/1900MHz Model Name: CA-P3D

Band: Quad band Protocol: GT06

GPRS: Class12, TCP/IP Battery: 3000mAh

Standby current: <3uA Positioning: GPS AND LBS

GPS Accuracy: 5m Brand: CAX

Sensitivity: -159dbm Device weight: 130g

Dimension: 64(L)mm*58(W)mm*20(H)mm

Main function:

1. GPS satellite and LBS base station dual-mode positioning
2. Vibration alarm and the sensitivity has 5 grades. Default grade is 2 grades.
3. Geo fence alarm contains run in area or run out of area alarm
4. Low work voltage: DC1V to 4.2V and has low battery alarm
5. Super small sleep current, it is less than 3uA
6. Waterproof and dustproof
7. Super slim and strong magnetic(optional)

How does P3D GPS Work:

First you need to insert one 2G GSM SIM Card, and open GPRS function.

Second please turn on the battery switch, then the device starts to work and LED will be on.

Third, when the blue LED flash, it stands for the GSM signal is normal.

Forth, when the green LED flash, it stands for GPS Signal is normal.

and you can set different work mode according to your requirements and put it to the vehicle you want to track.

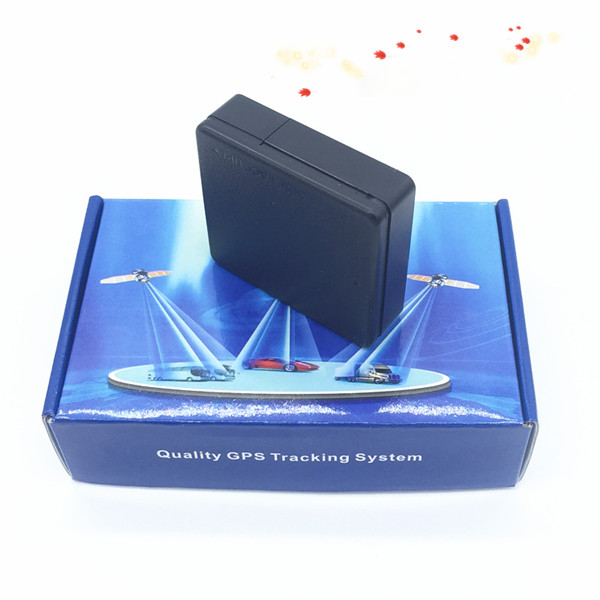

P3D GPS Tracker Picture:

P3D GPS Tracker Product Installation:

shenzhen CarTracker Technology Co., Ltd was founded in 2009,it is one of the most professional manufacturers for gps tracker and mobile DVR product.Our company is located in Shenzhen city,Guangdong province,China.At present our GPS Tracker products are mainly exported to Southeast Asia,Africa,South America,The Middle East ,Europe and so on.

Our main products are Car GPS Tracker,Personal GPS Tracker,large battery GPS Tracker and 3G mobile DVR.Every year we develop new products to meet customer requirements.and they are certified by CE,ROHS,FCC and 3C certification bodies.

We have a Research and Development team of more than twenty engineers. Most of them have a master's degree and 12 engineers have more than 8 years work experience in the GPS Industry.we also have a group of professional sales and after sales team. they will provide after-sales and pre-sales technical support for you.

Our factory is located in Cuishan industrial area,we have about 2000 square meters of building area and more 200 production staff.they are mainly responsible for gps product production,testing and quality control.our monthly output is more 20000pieces.the factory has passed ISO9001,ISO14000 Certification.

Welcome to visit our factory and we look forward to the opportunity to cooperate.
