No Power Cable Automobile Magnetic Gps Tracking Devices Works Long Time

Product introduction:

CA-P5D is one new mini large battery GPS Tracker product with magnet. and there is no power calbe, it contains one 3000mAh rechargeable battery. you don't need to connect any cables. you only need to insert one 2G GSM sim card with GPRS functions then all is ok. and you can also change the settings via SMS Command.

Specification:

Freqeuncy: 850Mhz 900Mhz 1800Mhz 1900Mhz

Band: Full band for all over the world

GPRS: Class12, TCP/IP GT06 Protocol

Standby current: less than 3uA

GPS Accuracy: less than 5 meters

Sensitivity: -159dbm

Brand: CAX

Model Name: CA-P3D

Positioning: GPS AND LBS

Dimension: 64(L)mm*58(W)mm*20(H)mm

Device weight: it is only 130g

Battery: 3000mAh

Deep sleeping mode introduction:

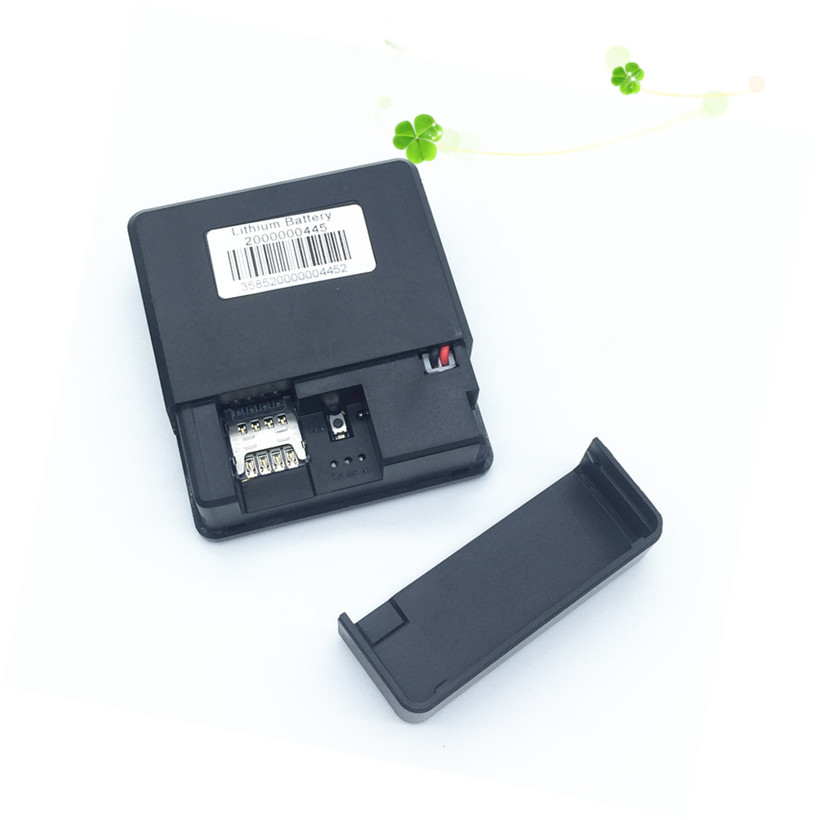

Insert the SIMCARD into the slot with the gap towards inside and metal part on downside,then switch the button to "on" position. Red,Blue and Green LED lights will be on one by one and device will send data now. After sending data, deice goes to deep sleeping mode automatically and all the 3 lights will be off as well as device are powered off. LBS positioning were opened as defaulted in device, user can close LBS positioning if not needed. SMS Command is #6666#LBS#0#.

If user press the active key once to awaken the device while device is in deep sleeping mode, the device will power on and send data immediately. If user press the active key for long time, device will power on GPS module first, then power on GSM module after 1 minute to send data. At this time you will see only red light is on and the other 2 lights are off. This 1 minute value can be set via command #6666#OGT#1#, range from 0-3 minutes.

SMS Command introduction:

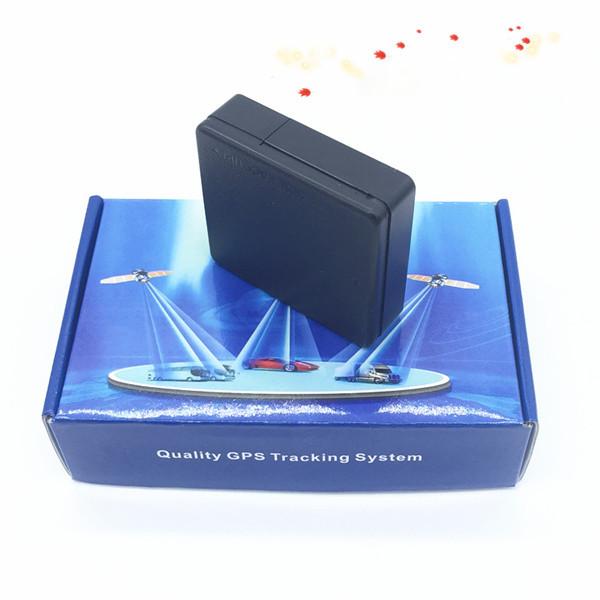

P3D GPS Tracker Product Picture:

GPS Tracker Applications:
