GPS LBS Tracker Device With 3000mAh Rechargeable Li-ion Battery

Product introduction:

CA-P5D works with dry battery or 3000mAh recharageable Li-ion battery.

It supports quad band 850/900/1800/1900MHz and GPS LBS dual mode.

The size is only 64(L)mm*58(W)mm*20(H)mm so small is easy to hide.

The GPS accuracy is less than 5 meters.

Specification:

Freqeuncy: 850Mhz, 900Mhz, 1800Mhz and 1900Mhz

Band: Quad band for all over the world

GPRS: Class12, TCP/IP

Standby current: less than 3uA

GPS Accuracy: less than five meters

Sensitivity: -159dbm

Positioning: GPS AND LBS dual mode

Dimension: 64(L)mm*58(W)mm*20(H)mm

Device weight: it is only 130g

Battery: Dry battery or rechargeable Li-ion battery.

Deep sleeping mode introduction:

Insert the SIMCARD into the slot with the gap towards inside and metal part on downside,then switch the button to "on" position. Red,Blue and Green LED lights will be on one by one and device will send data now. After sending data, deice goes to deep sleeping mode automatically and all the 3 lights will be off as well as device are powered off. LBS positioning were opened as defaulted in device, user can close LBS positioning if not needed. SMS Command is #6666#LBS#0#.

If user press the active key once to awaken the device while device is in deep sleeping mode, the device will power on and send data immediately. If user press the active key for long time, device will power on GPS module first, then power on GSM module after 1 minute to send data. At this time you will see only red light is on and the other 2 lights are off. This 1 minute value can be set via command #6666#OGT#1#, range from 0-3 minutes.

LED Indicator:

1. Red LED: Power indicator LED

1. Blue LED: GSM Indicator LED

1. Green LED: GPS Indicator LED

SMS Command introduction:

1. #6666#mode#n#hhmm1#hhmm2#hhmm3#hhmm4#hhmm5#

N>0 stands for deep sleeping mode and after sending data to server it will power off automatically.

hhmm stands for alarm clock, user can set 1 to 5 alarm clocks. and you have to set alarm clock at least, if user don't need to set alarm, one defaulted alarm will be active at 12:00

hh=hours, the range from 00-23

mm=minutes, range from 00-59

Example 1: #6666#MODE#1#1200#

Working mode n=1 and 1 alarm clock have been set via this command, it means device will wake up and send data at every 12:00 per day. A Version(Dry battery) with this mode defaulted.

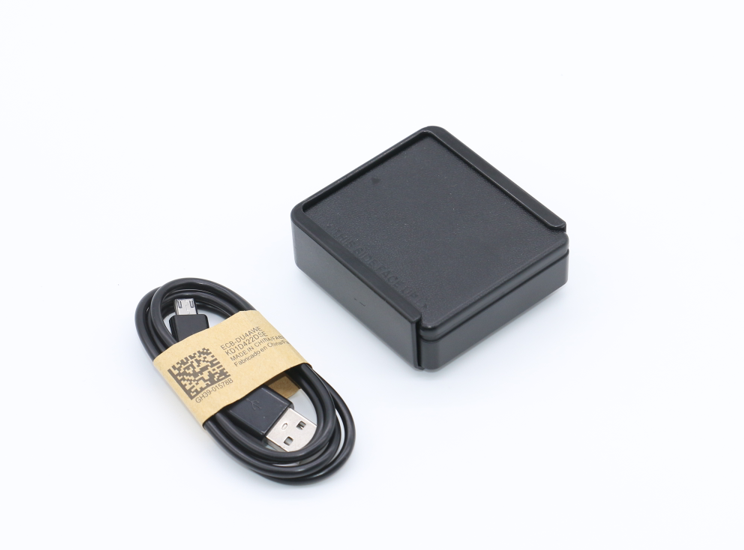

Picture:

Applications:

1. Car Rental / Fleet management and so on.

2. Container/cargo/asset tracking

Gurantee:

1. All of our product is free to use the Tracking platform server for first year.

2. All of our products there is a 2 year quanlity assurance.
