Large Battery GPS Tracker For Long Work Time And Support GPS LBS Dual Mode

Product introduction:

CA-P5D is one long work time GPS Tracker with magnet. It is easy to install and no power cable.

GPS device supports five work modes to meet diffenet customers' requirements.

The battery is 3000mAh rechargeable Li-ion battery, it can be recharged for more than 10000 times.

Specification:

GSM: 850/900/1800/1900MHz

Band: Quad band

GPRS: Class12, TCP/IP

Standby current: <3uA

GPS Accuracy: 5m

Sensitivity: -159dbm

Positioning: GPS AND LBS

Dimension: 64(L)mm*58(W)mm*20(H)mm

Device weight: 130g

Battery: Dry battery or rechargeable Li-ion battery.

Main function:

1. GPS satellite and LBS base station dual-mode positioning
2. Vibration alarm and the sensitivity has 5 grades. Default grade is 2 grades.
3. Geo fence alarm contains run in area or run out of area alarm
4. Low work voltage: DC1V to 4.2V and has low battery alarm
5. Super small sleep current, it is less than 3uA
6. Waterproof and dustproof
7. Super slim and strong magnetic(optional)

LED Indicator:

1. Red LED: Power indicator LED

1. Blue LED: GSM Indicator LED

1. Green LED: GPS Indicator LED

Installation:

1.Open the packing box to check whether the type of device is correct and whether the accessories are included ,or else please contact with your distributor.

2. Please consult distributor for selecting SIM CARD,End User must insert a 2G-GSM SIM Card with GPRS internet function.

3. Installation of SIMCARD,Find out the SIMCARD cover on backside of GPS and push the cover to take it off,Insert the SIMCARD into the slot with the gap towards inside and metal part on downside.

4. A small on/off button is nearby the USB port, switch the button to “ON” position to turn on device and LEDS will be on one by one.

5. Close the SIMCARD Cover.

Remarks:

Please power off the device before insert or take off SIMCARD. Detailed step is switch the on/off button to “OFF” position to turn off the power. After SIMCARD had been inserted well, switch the button to “ON” position again to turn on the device.

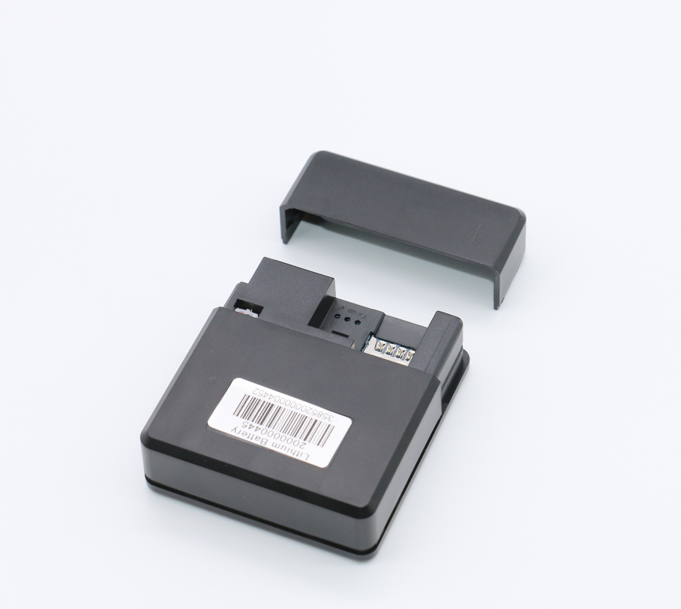

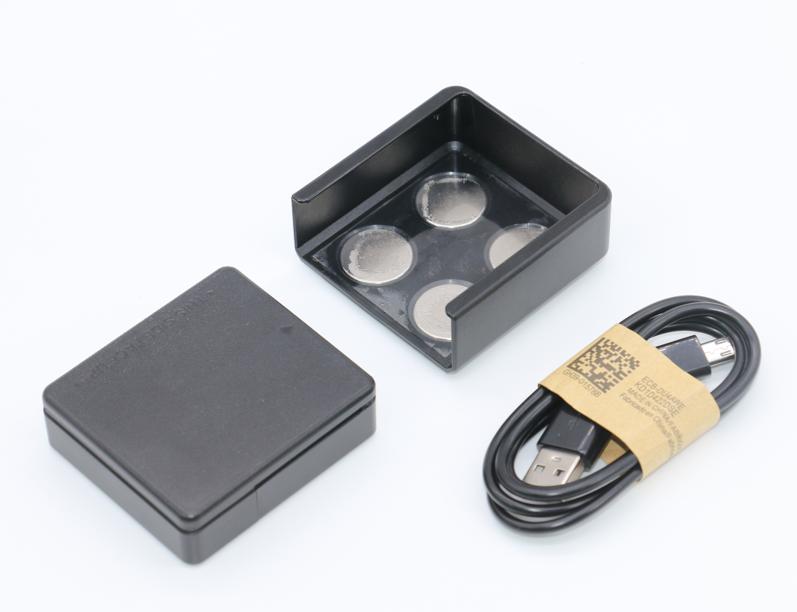

Picture:

Applications:

1. Car Rental / Fleet management and so on.

2. Container/cargo/asset tracking

Gurantee:

1. All of our product is free to use the Tracking platform server for first year.

2. All of our products there is a 2 year quanlity assurance.
