The Smallest GPS Tracker Used In Vehicles And Motorcyles With
Internal Antenna
Instructions:
L GSM Quad-band
L GPS+GSM+GPRS wireless network
L High sensitive GPS chipset
L Real-time tracking
L Built-in GSM&GPS antenna
L Built-in ON/OFF power, wide voltage input range
L Built-in acceleration sensor for vibration alarm
L Support ACC detection, real-time reporting car status
L Built-in 450mAh battery for alarm when the power supply is
disconnected unexpectedly
L Tele-cut off (petrol/electricity) function
L SOS button for SOS alarm
L Voice monitor function
L Built-in CPU, eliminating breakdown automatically
L Three LED indicators: GPS-blue; GSM-green; Power-red
L Check location via platform
Automatically get address by longitude and latitude.
Multi-function system administrator, edit and manage user
conveniently.
Operate terminals based on users privilege to prevent error.
multi-vehicle track replay meanwhile.
Different colors to show vehicle different status:
running/stop/alarm/invalid location.
Real time Stat. vehicle status number: monitored qty/unmonitored
qty/alarm qty/ located qty/non-located qty.
Grouped display vehicles according to their info or status.
Vehicle alarms or status changes, tracker sends SMS to defined
phone to Email.

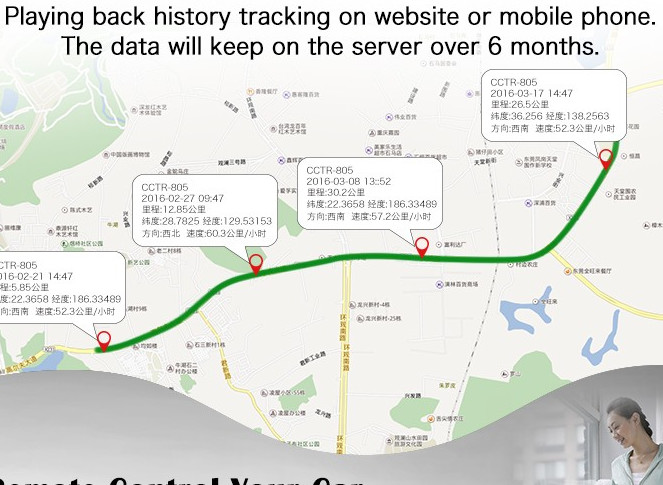

Historic track can be output by KML, and load by Google Earth.
All kinds’ reports can be output to Html, word, Excel files.
2. Technology parameter:
GPS chip SIRF4 chip
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45s,Warm status 35s,Hot status 1s
Build in Battery Chargeable changeable 3.7V 800mAh Li-ion battery
3.HOW IT WORKS
1)Simply insert a GSM sim card into the GPS unit. Whenever you call
the unit it will respond with the coordinates of its
2)Location thru a SMS message. You can then use these coordinates
on any mapping software (for example Google earth)
3)Which will show where exactly the unit is located.
4)With some little setup, you can also have the device to send the
data directly to a computer thru GPRS and display its
5)Location on a map with our bundled software for real-time
location tracking.
FAQ:
Q: I CANNOT make it work. Both the tracker and user manual are
complicated
A: The tracker comes with a certain technology, but it is a little
far away from being told as complicated. About the user manual, it
illustrates very detailed on each function, EVEN each correct
command you should edit to send to tracker. You just need to spend
some little patience reading it over. The user manual will NOT ONLY
helps you get familiar with the tracker, BUT ALSO will help you do
a CORRECT operation. We are quite sure and very pleased to offer
you technical support for any problem, BUT as long as you refer to
use manual carefully, you must make it work in perfect condition
TOTALLY by yourself. You will enjoy this feeling.
Q: If this tracker can work without a simcard?
A: This tracker is a combination of current GSM network and GPS
positioning. A suitable simcard is a FIRST NECESSITY to make it
work. These 2 CANNOT work seperately.
Instruction:
1. Make sure to read this manual carefully before using this
product.
3. Please make sure that all the cables of the tracker has been
connected rightly, and then connect the tracker to host power. Must
not install or take down the tracker when it is power on. If you
found any troubles or omissions about the connections of cables,
please cut off power first, otherwise you will easily damage the
tracker.
4. The tracker works in wireless communications, so please cut off
the host power before your vehicles entering fuel depot and
dangerous material place.
5. The tracker’s work voltage is 9V-30V. Please use the tracker in
the scope of work voltage.
6. The host of GPS tracker is a low-power wireless transmitter and
receiver. It receives and sends radio frequency signal when it is
working.
7. To avoid electromagnetic interference or uncompatible
configuration, please stop using your tracker in the noticed place.
