Mini Pet GPS Locator With GPS And LBS Functions And Long Standby
Time
Features:
1. Real time location:
Via SMS mobile app Wechat and computer web to achieve a variety of
functions.
2. Geo Fence
Can set a safety range based on the GPS location,When out of the
range,the mobile,app and web will receive the alarm.
3. Accurate positioning
Position error<=5meter.
4. Smart LED Shining
Smart LED Shining in night, Can set by APP
5. HD Street view
Can see the street view around the position via app and platform.
Operating Instructions:
1. Please Check whether the device model is correct, accessories
are complete before using.
2. Please check the SIM CARD is correct or not before inserted, the
device only supports the GSM CHIP
(compatible with 2G network SIM CARD) and the card should be have
flow data credits and can make call.
3. Power on: Insert the SIM Card to the device,the green LED
quickly flashes 3 times, then device on. The
Red LED keeps on for 5s and then off means the device read the GSM
Card and then work normally.
4. Power off. Take out the SIM card of the device, then device off.
5. Charge: connect USB charging line to charge power , green LED
keeps on when fully charged.
Install the SIM CARD

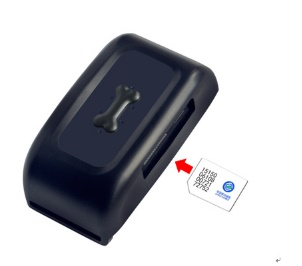

1. To install the SIM CARD as picture show:
Parameters:
| Items | Parameters |
| work voltage | 3.7V－4.2V |
| GSM chip | MTK6261 |
| GPS chip | Ublox7020 |
| work current | 5VDCtandard mode 50mAh 5VDC power saving mode 15mAh 5VDC |
| Dimension | 95*63*23mm |
| Net weight | 200g |
| frequency | Quad-band :850/900/1800/1900MHz |
| GPS Performance Index | Receive Channels: 12 parallel channel,Position Accuracy : ≤5m
m(95%) |
| GSM Performance Index | Position Accuracy: 50m(60%) 150m (95%) It will depend on the local base station number and density |
| Output Interface | Charge/Digital Port |
| Antennas | GPS Antenna: build-in GSM Antenna: build-in |
| Work temperature | -30℃～+85℃ |
| Work Humidity | 5%～95% |
| Storage Temperature | -40℃～+85℃ |
Main Admin Number Binding
Main admin binding number: mainly used to receive Geo Fence alarm
and low battery alarm information.
Send SMS: SOS,Main admin number TO device sim card No.
SOS KEY: SOS1,138........ Reply: SOS1,OK
SOS KEY: SOS2,138........ Reply: SOS2,OK
SOS KEY: SOS3,138........ Reply: SOS3,OK
Note: Main admin number can bind 3 numbers, If you want to replace
the number you bound, just need to bind a new noe to replace it.
Main Admin Number Binding cancellation
Send SMS: DEL SOS,1 TO Device SIM Card No. Reply: DEL OK
Send SMS: DEL SOS,2 TO Device SIM Card No. Reply: DEL OK
Send SMS: DEL SOS,3 TO Device SIM Card No. Reply: DEL OK
Forced wake up the GPS Positioning
Send SMS: MD,1
Note: The device reacquire GPS positioning in the stationary
states.
